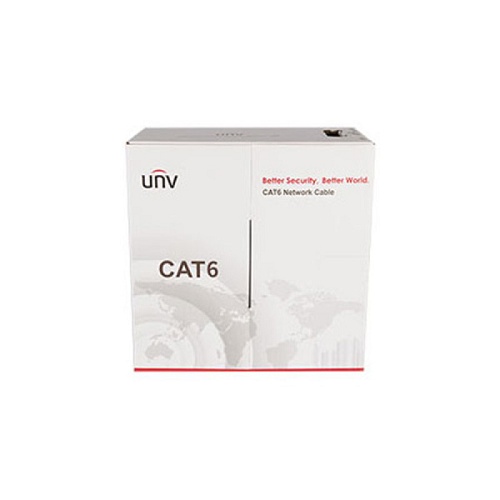

High-Performance Network Cabling Solution The UNIVIEW CAB-LC3100B-E-IN is a premium Category 6 network cable featuring a distinctive orange jacket for easy identification and professional installations. Engineered for superior performance in security systems and network infrastructure, this cable delivers reliable connectivity for IP cameras, access control systems, and high-speed data networks. Key Features Enhanced Visibility: The bright orange jacket provides excellent visibility for network identification, cable management, and troubleshooting, making it ideal for organized installations where cable routing needs to be easily identifiable. Category 6 Performance: Supports Gigabit Ethernet speeds up to 1000 Mbps and frequencies up to 250 MHz, ensuring optimal performance for modern IP surveillance systems and network equipment. Indoor Optimization: Specifically designed for indoor installations (IN designation), featuring appropriate jacket materials and construction for controlled environment applications. Professional Grade Construction: Built with high-quality copper conductors and precision twisted pair geometry to minimize crosstalk and ensure reliable signal transmission over extended distances. UNIVIEW Quality: Manufactured to UNIVIEW’s strict quality standards, ensuring compatibility with UNIVIEW security systems and general networking applications. Versatile Applications: Perfect for IP camera installations, network switches, access points, and other structured cabling requirements in commercial and residential environments. Product Specifications Specification Details Model Number CAB-LC3100B-E-IN Cable Category Category 6 (CAT6) Cable Type UTP (Unshielded Twisted Pair) Jacket Color Orange Installation Type Indoor (IN) Conductor Material Pure Copper Wire Gauge 23 AWG (American Wire Gauge) Number of Pairs 4 pairs (8 conductors total) Characteristic Impedance 100 Ohm ±15% Data Transmission Speed Up to 1 Gbps (1000 Mbps) Bandwidth 250 MHz Maximum Channel Length 100 meters (328 feet) Jacket Material PVC (Indoor rated) Cable Diameter Approximately 5.5-6.0mm Operating Temperature -20°C to 60°C (-4°F to 140°F) Storage Temperature -40°C to 70°C (-40°F to 158°F) Minimum Bend Radius 4 times cable diameter Tensile Strength 110 N (25 lbf) maximum Compliance Standards TIA/EIA-568-C.2, ISO/IEC 11801, IEC 61156 Flame Rating CMX or CM rated Return Loss ≥20 dB (1-100 MHz) NEXT (Near End Crosstalk) ≥40 dB @ 100 MHz Applications IP cameras, network devices, PoE devices, data networks Connector Compatibility RJ45, 8P8C modular connectors Packaging Options Various lengths available Installation Advantages Color-Coded Organization: The orange jacket enables easy network organization and identification, particularly useful in multi-cable installations where different network segments need visual distinction. Indoor Optimized: Purpose-built for indoor environments with appropriate flame ratings and jacket materials for safe installation in commercial and residential buildings. PoE Ready: Fully compatible with Power over Ethernet (PoE) applications, making it perfect for IP camera installations that require both data and power transmission. Quality Assurance: UNIVIEW’s manufacturing standards ensure consistent performance and reliability across all cable segments. Professional Installation: Designed for permanent installation with appropriate tensile strength and bend radius specifications for professional cable management systems. Ideal Applications IP Surveillance Systems: Perfect for connecting UNIVIEW and other brand IP cameras Access Control Networks: Reliable connectivity for door controllers and card readers Network Infrastructure: Backbone cabling for switches, routers, and access points PoE Device Installation: Suitable for devices requiring power and data over single cable Structured Cabling: Professional installations requiring color-coded organization Smart Building Systems: Integration with building automation and security networks This cable represents an excellent choice for security integrators and network professionals who require reliable, easily identifiable cabling with proven Category 6 performance for their installations.
