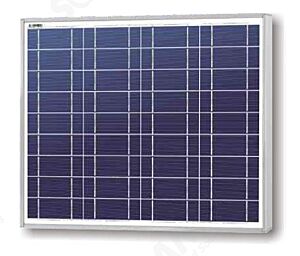

Description Product code: 020011264 Maximum power (Pmax): 20W Voltage at Pmax (Vmp): 17.5V Current at Pmax (Imp): 1.14A Open-circuit voltage (Voc): 20.83V Short-circuit current (Isc): 1.21A Temperature coefficient of Voc: -(80±10)mV/°C Temperature coefficient of Isc: (0.065±0.015)%/ °C Temperature coefficient of power: -(0.5±0.05)%/ °C NOCT (Air 20°C; Sun 0.8kW/m² wind 1m/s): 47±2°C Operating temperature: -40°C to 85°C Maximum system voltage: 600V DC Power tolerance: ± 5% *STC: Irradiance 1000W/m², AM1.5 spectrum, module temperature 25°C *NOCT:Nominal operating cell temperature (the data is only for reference)
