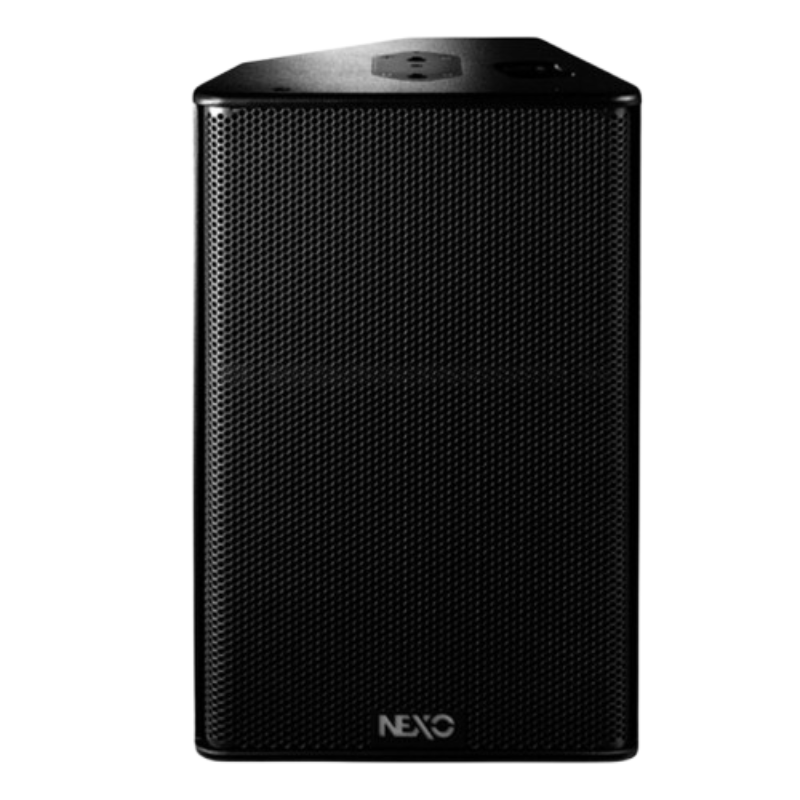

Description NEXO Stage Monitor Speaker PS15R PS15-R2 High-powered 15″ PS15-R2 A high power system capable of producing 136dB Peak SPL, the new PS15-R2 Loudspeaker can be safely driven with up to 2000 Watts of amplifier power. Controlled by the new DTD Controller, the PS15-R2 achieves high SPLs and wide bandwidth performance, despite being only half the weight and volume of common trapezoidal loudspeaker systems. Specifications Frequency Response [a] 50 Hz – 18 kHz ±3 dB Usable Range @-6dB [a] 47 Hz – 18 kHz Sensitivity 1W @ 1m [b] 102dB SPL Nominal, 99dB SPL Wideband Height x Width x Depth 675mm x 434mm x 368 mm Nominal Peak SPL @ 1m [b] 133 to 136 dB Peak HF Dispersion [c] 50° to 100° Hor. x 55° Vert. Rotatable Horn 4 positions Directivity Q & DI [c] Q : 16 Nominal DI : 12dB Nominal ( f > 1.5 kHz ) Crossover Frequencies 1.1 kHz Passive or Active (internally switchable) Nominal Impedance Passive : 8Ω or Active : LF: 8Ω & HF: 16Ω Active Mode only available on NXAMP Recommended Amplifiers Passive: 1000 to 2000 W / 8Ω Active: (LF) 1000-2000W/8Ω (HF) 250-500W/16Ω Features Components LF 1 x 15” (38 cm) long excursion Neodymium 8Ω driver HF 1 x 2” throat, 3” Titanium diaphragm, driver Low Distortion, Constant Directivity Asymmetrical Dispersion Horn Height x Width x Depth 675mm x 434mm x 368 mm (26.57” x 17.08” x 14.48”) Weight 28 kg (62 lbs.) Speakon Connectors 2 x NL4MP Speakon 4 pole (switch passive to active inside Construction Baltic Birch Ply finished with textured black coating Fittings Handles 4 Metal recessed pockets Front finish Moulded dark grey metal grill Flying Points Two plate connecting with external accessories Stand fittings Built in Steel Stand Fitting, (35mm 1 3/8”)
