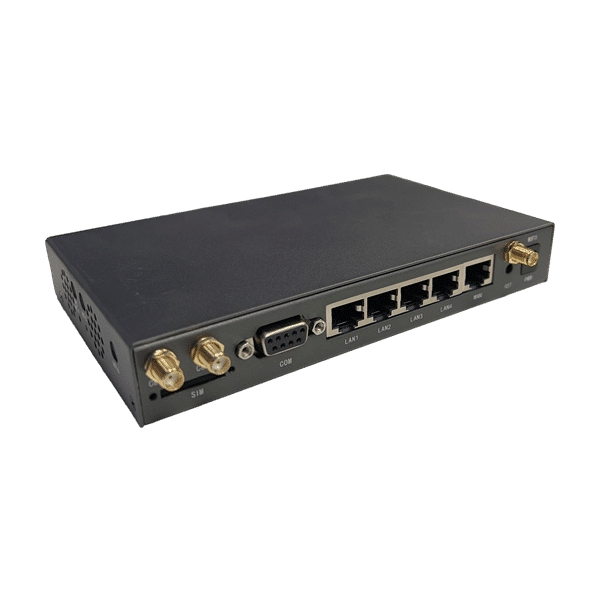

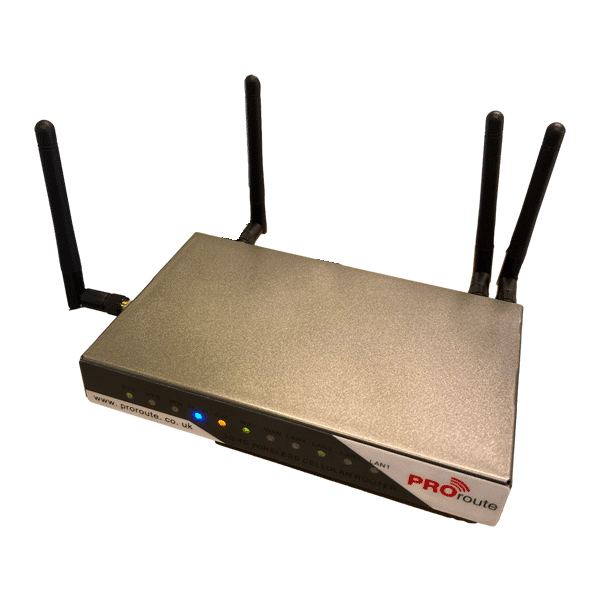

Proroute H820 4G LTE M2M RouterDo you need a reliable and multi-functional LTE 4G Router for your remote monitoring and management project?The Proroute H820 embedded industrial 4G router includes keep alive features such as Ping Reboot to ensure that the router will provide a reliable 4G connection so you can install it at a remote location to provide convenient internet access via the 4G network without having to worry about expensive and time consuming site visits to reboot the router.The Proroute H820 includes a built-in firewall for security purposes and all the standard features you would expect from an M2M router including port forwarding, timed reboot, ping reboot and SMS reboot.Technical Specification4G LTE ModemInterface – 4G LTE (Upto 100Mbps) / DC-HSPA (Upto 42Mbps) / HSPA (Upto 21Mbps) / EDGE / GPRS / GSM Peak Download Rate – 100 Mbps Peak Upload Rate – 50 Mbps Frequency Bands – LTE (800/900/1800/2100/2600 Mhz), WCDMA / 3G / HSPA (900/2100 mhz), EDGE/GPRS/GSM (900/1800/1900) SIM Interface – 1.8V or 3V Antenna Diversity – YES 4G MIMO – YESWi-Fi WiFi 802.11b/g/nSMS/Voice control SMS/Voice features to control the router, checks status, reboot or notify of alarm incidentsProtocol Support TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, SNMP, NAT, DMZ, ALGVPN VPN, IPSec, PPTP (client)Security Security 64/128-bit WEP (Wired Equivalent Privacy) WPA & WPA2 (Wi-Fi Protected Access)Advanced Firewall Features Network Address Translation (NAT) Stateful Packet Inspection (SPI) VPN Pass-through Media Access Control CSMA/CA with ACK Certifications RADIUS Client Interface Dynamic Route Feature (BGP, OSPF)LAN 4 X 10/100M LAN port (RJ45 interface)WAN 1 X 10/100M LAN port (RJ45 interface) – enables failover from WAN to 4G Router can be used as 4G failover router with option to use WAN port as primary internet connection with failover to 4G in the event that WAN internet becomes unavailable.Antenna 2 X antenna for Wi-Fi (Mag mount) 2 X antenna for Cellular (Mag Mount)LED Indicators LAN, WAN, WIFI, CELL, Signal, VPN, SYS – ActivityConfiguration Interface Web/Telnet, Local RJ45 and WiFiUIM/SIM Card Slot Supports 1.8V/3V UIM/SIM cardsPower Power supply DC7V-30V, typical DC9V 1A Power consumption: Idle: 15mA@9VDC Max: 250mA@9VDC Average:105mA@9VDCSoftware Device Management WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chrome, Opera, Safari, IE6) SNMP SYSLOG Minimum System requirements computer with: Windows 7, Vista, Windows XP SP2, Windows 2000 SP4, or Mac OS® X (v10.4/v10.3), Linux Internet Explorer 6 or Mozilla Firefox Network Interface Card / WiFiPhysical Operating Temperature Storage: 72°F to 153°F (-40°C to 90°C) Working: 36°F to 126°F (-30°C to 80°C) Humidity: 95% Maximum (Non-condensing)Dimensions Item (L x B x H): 170mm x 105mm x 25mm SKU: PRORT-H820-4G-CAT4-N Categories: 4G CCTV, 4G Routers, Manufacturers, Proroute, Proroute 4G Routers Tags: 4G Router, H820 4G Router, m2m 4g router, proroute, proroute h820, proroute h820 4g router Brand: Proroute
