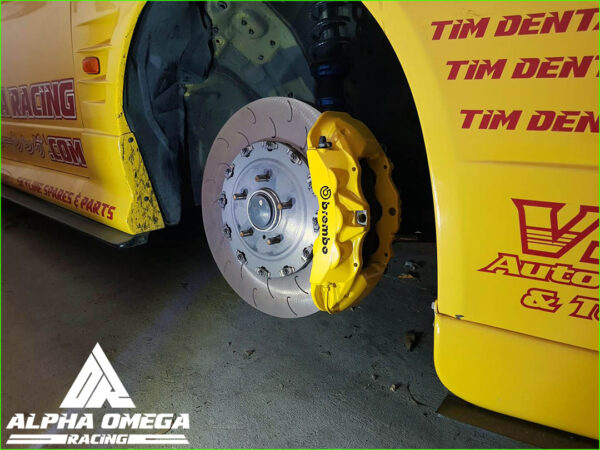

R35 Killers – semi-used fronts: Brand new Alpha Omega billet adapter kit Brand new HEL braided brake lines Used calipers & pads Brand new seals Brand new dust boots Here’s some cool powdercoating colours we’ve done on R35 Killers: What are R35 Killers? Open me for all the details R35 GT-R Brembo Killers Installed: R34 GT-R R35 GT-R Brembo Killers: Front 6 Piston Monoblock Brembo 350x32mm Rotors R35 GT-R Brembo Killers: Rear 4 Piston Brembo 350x20mm Rotors “R35 Killers” Why these instead of used R35 GT-R Brembo brakes? More cost effective overall and Economical replacement pads Inexpensive replacement rotors Lighter weight Everything is brand new Fits 17″ wheels Plenty of options for pads and rotors Optimised front to rear balance QUICK OVERVIEW FRONT = Brembo monoblock 6 piston 350x32mm rotors REAR = Brembo 4 piston 350x20mm rotors 100% = bolt onto your Nissan Skyline (R32, R33, R34) or Nissan Silvia (S13, S14, S15) or Nissan Fairlady (Z32) with zero modifications, except dust shields ABOUT THE BREMBO CALIPERS These are top of the range genuine Brembo monoblock 6 piston front calipers, and matching rear genuine Brembo 4 piston rear calipers, including the unbeatable “radial mount” system. They’re taken from the limited edition Ford Performance Vehicles “FPV” GT R-spec factory optional Race Package. At the time of release the FPV GT R-spec was the fastest car in Australia! Road legal Staggered pistons Fully loaded with pads, shims, clips, pins, and bolts Genuine Brembo brakes in genuine Ford OEM packaging. Beware of fakes! “Radial” mounting system for unrivalled pedal feel, performance, and rigidity The fronts use the same pad as the top of the range Subaru STi Brembo 6pots which means there are plenty of hardcore pads available, and they’re also the same as the top of the range Lexus IS-F; that means there are plenty of luxury pads too Genuine Ford Brembo ABOUT THE ROTORS Our engineers specifically selected OEM parts so that you are not locked in to one brand or one supplier. You have plenty of choice from cheap to expensive; lots of brands, lots of designs, worldwide availability, and excellent fitment. Front : Mitsubishi Lancer EVOLUTION 10 front rotors @ 350x32mm Rear : Nissan 370Z rear rotors @ 350x20mm. Yes your handbrake works perfectly. Rotors are NOT supplied in this kit because there are so many choices to suit all budgets and all applications; you can use ~$200 rotors from RDA (part number RDA7117) to ~$2000 rotors from Project Mu (part number GPRM047) and anything in-between! If you run a Nissan Silvia / S-chassis (S13, S14, S15, 180sx, 200sx, 240sx) and you want a working handbrake, then you will need to bolt on the Skyline’s drum handbrake setup. FPV GT R-Spec Brembo Monoblock 6 Piston Calipers ENGINEERING Here’s a few things accounted for, other than piston count and rotor size… Rigidity (Performance) More important than how many pistons you have is the ridigity of the braking system. The radial-mounting system is superior to the cheap axial “lug-mounting” system and it has allowed us to make these brakes 248% stiffer than our gold-standard EVO Brembo brakes, and those are already 193% stiffer than the competition, safer, higher performance, bla bla bla. Basically that all means really really high performance brakes. The R35 GT-R Brembo Killers are responsive, firm, and consistent. Billet Aerospace 7075-T6 CNC Machined Adapter, Anodised in Signature Sun Silver Pad Contact & Pad Knockback The brake pads do not overhang the rotor. They sit in the perfect position. Pad knockback is literally the best it can be – because we moved the caliper lower, into the ideal location. If you look at other companies, they just put the caliper at the typical 2/10-o’clock position. Our 3/9-o’clock position means complicated engineering and harder manufacturing, but it’s worth it! The lower caliper also means a lower centre of gravity for better handling; a free side benefit of all Alpha Omega Racing brakes. Bias / Balance @ 67% front : 33% rear 237 pages analysed, calculations made, components chosen. Long story short we have finally achieved our long-lusted bias of 67:33. This is a slightly more aggressive tune over the special edition Skyline GT-Rs. Did you know Nissan moved the bias in the base-model R34 GT-R from 70:30 to 68:32 for the special edition V-Spec, M-Spec, Nür and N1 models? They did this by creating new rear calipers and new rear rotors. This setup was never fitted to any other vehicle before or after… Nissan did all this just for 2%? All this just to sell a handful of special editions? In terms of brake balance, 2-3% is a significant difference. Finished and installed on a car… without the car attached 100% Bolt On All big brake kits require you to bend, cut, or remove the dust shields to make room for the larger brakes – then we engineered the components so that everything will bolt straight on. There is no modifying, no cutting, no drilling, no adapter-on-adapter, no spacing out, nothing. No compromises! Materials / Manufacturing Alpha Omega Racing uses only the best for strength, rigidity and performance: Billet 7075-T6. This is the top of the range. 12.9 grade hardware. This is also top of the range. 100% billet CNC machining. This is also top of the range. These are all higher specifications than the OEM components = higher performance. Did you know the ‘7075’ material was invented by a Japanese company and it’s used in stuff like the space shuttle, precision rifles, fighter planes, and naval warships? Very cool! FPV GT R-Spec Brembo 4 Piston Calipers Brake Pads The brake pads are large. Combined with the large-annulus 350mm rotors you can use a less-aggressive compound to achieve stronger stopping in a wider range of applications, for longer. Here are some common scenarios: You drive on the street and don’t want to chew out your rotors with agressive pads. Grandma crosses the road at 6am and didn’t see your machine flying towards her! Your brakes are stone cold BUT you can actually stop that beast of yours *phew* Drive to the track, do your track day, then drive straight home – no more installing agressive race pads in a week earlier, bedding them in, racing your race, then go home to re-install your street pads, and then bed those back in again. You’re cooking your current brake’s seals / dust boots after every eighteenth spirited drive. You haven’t checked, have you? lol The genuine Ford/Brembo pads included are aimed at a mix of nice road drivability and some track work. What you’ll see when the rears are installed FEATURES AND BENEFITS Huge monoblock radial-mount 6 piston front / 4 piston rear calipers Genuine Brembo brakes in genuine Ford packaging Large 350mm rotors front and rear Optimised brake bias @ 67% front : 33% rear Brand new everything 100% bolt on Fair price upfront low ongoing costs: there are lots of cost-effective pads and inexpensive rotors Specialists in Nissan Skyline and Nissan Silvia brakes: Brembo HEL Alpha Omega WHAT’S INCLUDED? EVERYTHING except rotors are included for a bolt on installation. No other parts will be required. Front: 2x Ford FPV GT R-spec front Brembo 6 piston monoblock calipers with pads, shims, clips, pins, and bolts – gloss black 2x Military-specification CNC machined billet aerospace 7075-T6 fitting kit 2x ADR-approved custom braided brake lines by HEL Performance 2x Staggered piston orientation kit Various 12.9 grade bolts and washers Printed full step-by-step installation instructions with colour pictures NO rotors included (EVO 10 front 350x32mm) Rear: 2x Ford FPV GT R-spec rear Brembo 4 piston calipers with pads, shims, clips, pins, and bolts – gloss black 2x Military-specification CNC machined billet aerospace 7075-T6 fitting kit 2x ADR-approved custom braided brake lines by HEL Performance Various 12.9 grade bolts and washers Printed full step-by-step installation instructions with colour pictures NO rotors included (370Z rear 350x20mm) TECHNICAL COMPARISON Brakes Pistons Bias Rotor Sizes Rotors Weight Brake Pad Sizes Recommended Wheel Size R34 GTR (base model) 4 2 70:30 324x32mm 300x22mm 34kg 120x74x14mm 77x66x13mm 17″ R34 GTR (V-Spec / M-Spec / Nür / N1) 4 2 68:32 324x32mm 322x22mm 35kg 120x74x14mm 77x66x13mm 17″ EVO 350mm Brembo 4 2 68:32 350x32mm 350x20mm 37kg 132x77x14mm 77x66x13mm 18″ R35 GT-R Brembo Killers 6 4 67:33 350x32mm 350x20mm 37kg 165x83x16mm 110x69x16mm 18″ “Actual” R35 GT-R 6 4 64:36 390x34mm 380x30mm 49kg 190x85x16mm 131.5x68x17mm 19″ VISUAL COMPARISON R35 GT-R Brembo Killers (dark red, brand new, pads installed) VS ACTUAL R35 GT-R Brembo (light red, used, no pads installed) R35 Killers, customised Even 17″ wheels can fit! TE37 17×9 0 @joshuamwakefield Buddy Club P1 17×9 22 @RayWong
