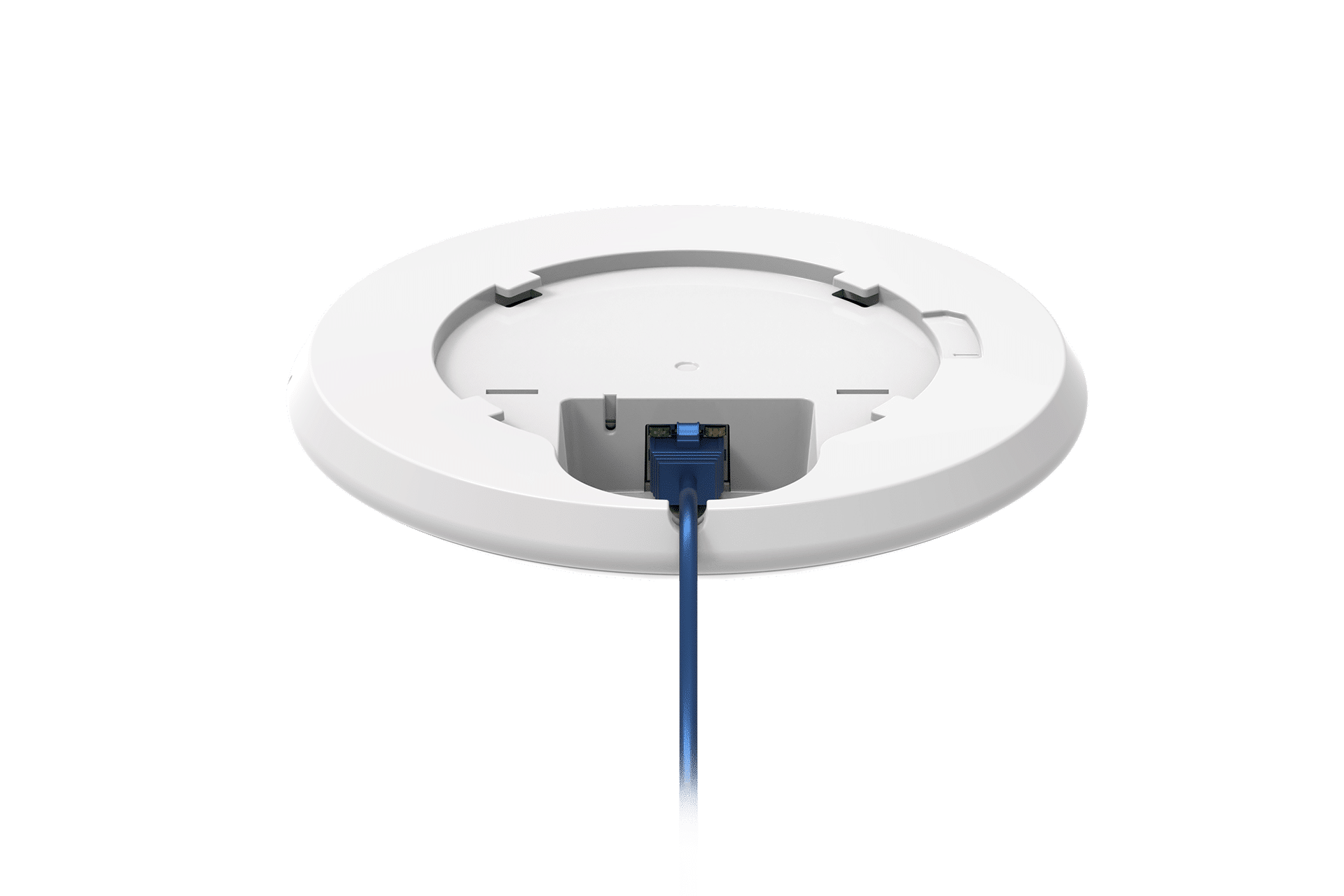

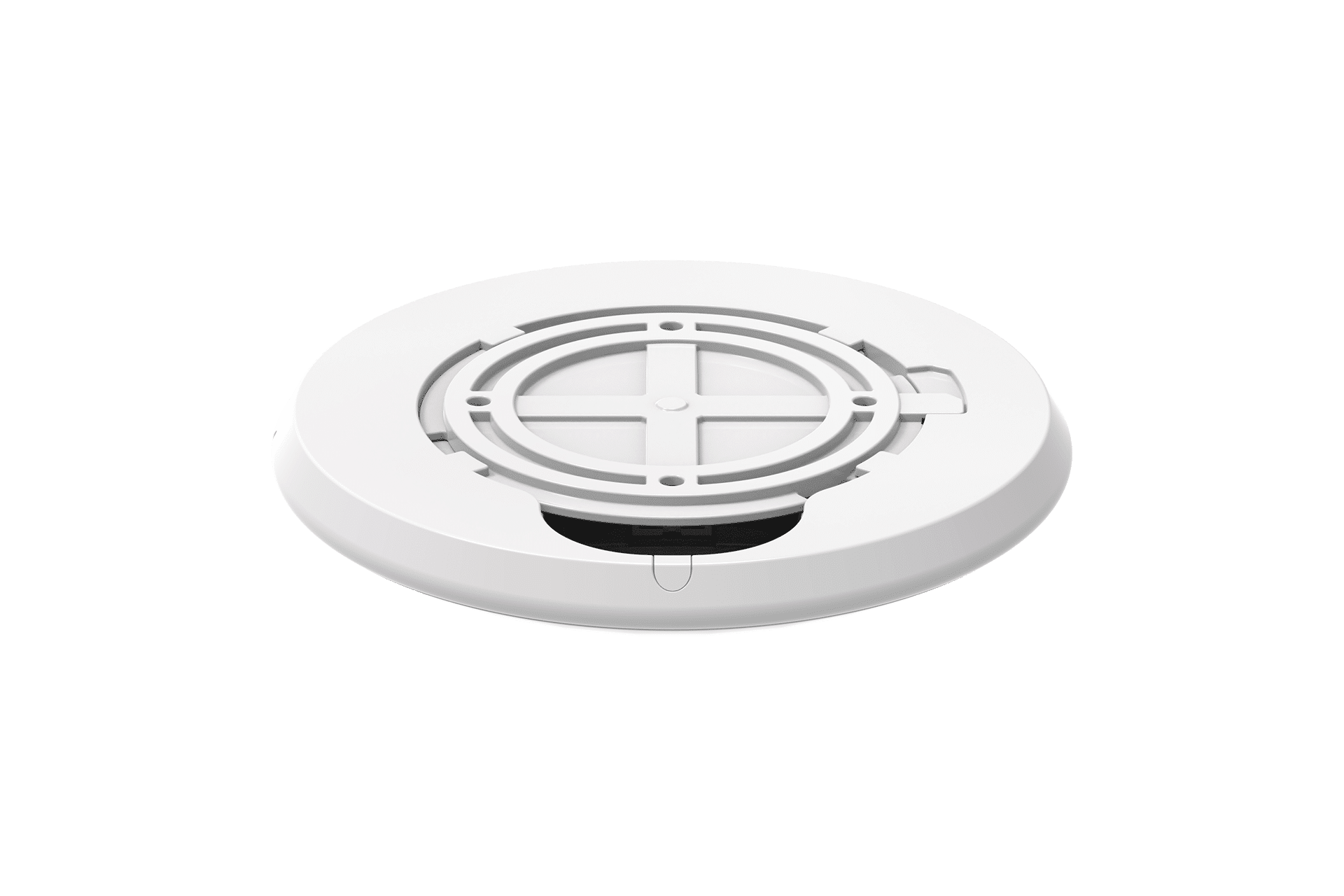

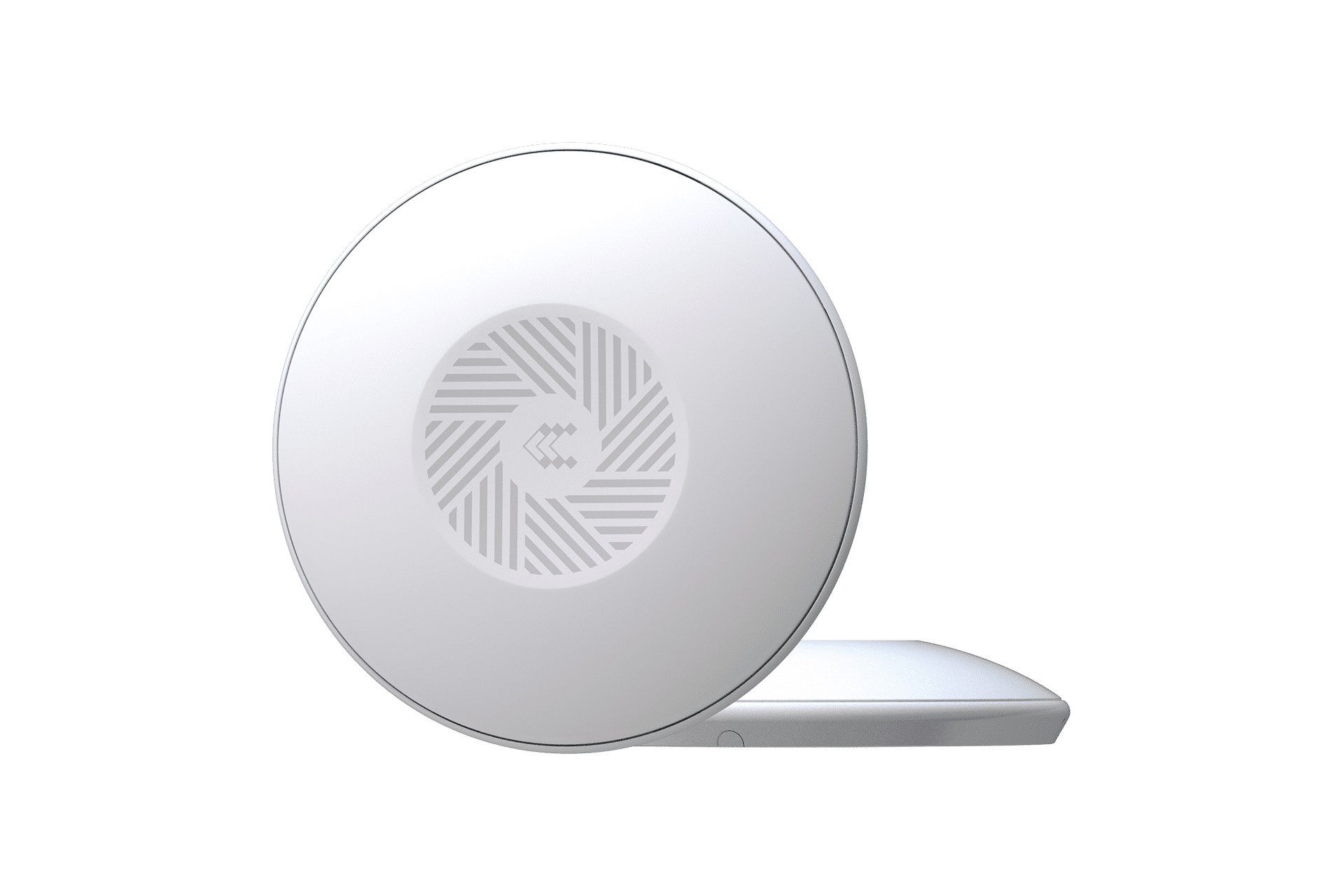

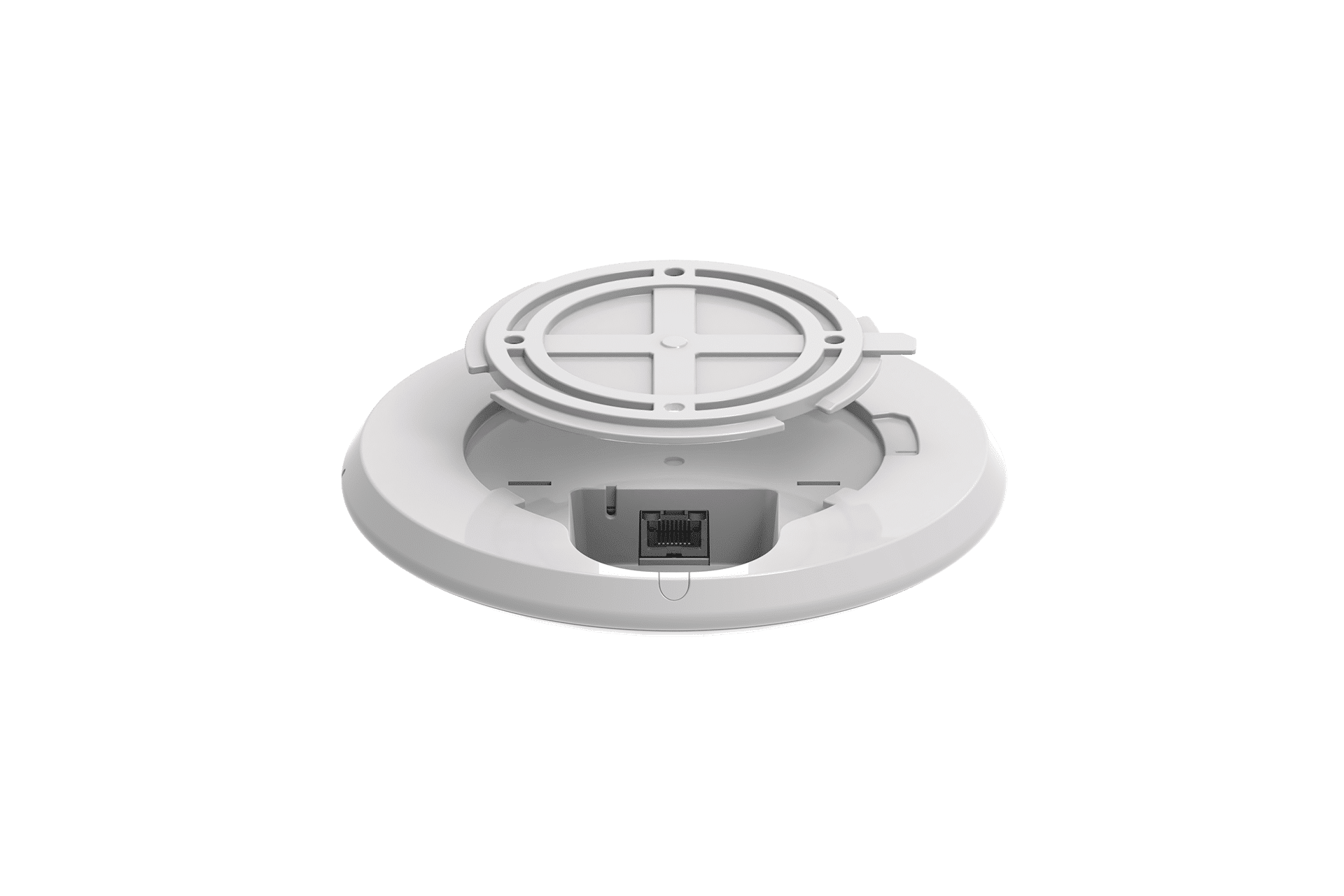

Wi-Fi 5 ACCESS POINT – TAP200Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.Ideal to extend the range of Teltonika routers such as the RUTM10 which is part of the OTD500 Outdoor 5G router solution for small businesses, site offices and temporary office 5G connectivity.The TAP200 Teltonika Networks Access Point it’s WiFi 5 backward-compatible., perfect for strengthening Wi-Fi coverage in small enterprise and commercial spaces. This PoE-in access point can be powered by active PoE devices via its RJ45 port and was designed with simplicity and ease of installation in mind.TAP200 SpecificationWIRELESSWireless mode802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)Wi-Fi securityWPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, isolate clientsSSID/ESSIDESSID stealth mode (Hide SSID)Wi-Fi usersUp to 100 simultaneous connectionsWireless mesh/roamingFast roaming (802.11r)Wireless MAC filterWhitelist, blacklistETHERNETEthernet1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossoverNETWORKNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SMNPSECURITYAuthenticationSSH key based, HTTPS, CLI, IP & Login attempts blockVLANTag-based VLAN separationMONITORING & MANAGEMENTWEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel logFOTAFirmware update from server, automatic notificationSSHSSH (v1, v2)JSON-RPCManagement API over HTTP/HTTPSRMSTeltonika Remote Management System (RMS)SYSTEM CHARACTERISTICSCPUMediaTek, Dual-Core, 880 MHz, MIPS 1004KcRAM256 MB, DDR3FLASH storage16MB, SPI NOR FlashFIRMWARE / CONFIGURATIONWEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backupFOTAUpdate FWRMSUpdate FW/configuration for multiple devices at onceKeep settingsUpdate FW without losing current configurationFIRMWARE CUSTOMISATIONOperating systemRutOS (OpenWrt based Linux OS)Supported languagesBusybox shell, Lua, C, C Development toolsSDK package with build environment providedPOWERConnectorRJ45 SocketInput voltage range44.0 – 57.0 VPoE standards802.3af PoE Class 1Power consumptionIdle: < 4 W / Max: < 5.5 WPHYSICAL INTERFACESEthernet1 x RJ45 port, 10/100/1000 MbpsStatus LEDs1 x Power LED (can be turned off from web-UI)Antennas2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-FiResetReboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATIONCasing materialUV stabilized plasticDimensionsØ 158 mm x 30 mmWeight190 gMounting optionsAP Mounting Bracket (for ceiling mount)OPERATING ENVIRONMENTOperating temperature-40 °C to 75 °COperating humidity10% to 90% non-condensingIngress Protection RatingIP30REGULATORY & TYPE APPROVALSRegulatoryCE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEEEMC EMISSIONS & IMMUNITYStandardsEN 55032:2015 A11:2020EN 55035:2017 A11:2020EN 61000-3-3:2013 A1:2019 A2:2021EN IEC 61000-3-2:2019 A1:2021EN 301 489-1 V2.2.3EN 301 489-17 V3.2.4ESDEN 61000-4-2:2009RSEN IEC 61000-4-3:2020EFTEN 61000-4-4:2012Surge protectionEN 61000-4-5:2014 A1:2017CSEN 61000-4-6:2014DIPEN IEC 61000-4-11:2020RFStandardsEN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1SAFETYStandardsIEC 62368-1:2018EN IEC 62368-1:2020 A11:2020EN IEC 62311:2020About WiFi Protocols and StandardsWiFi Standards and FeaturesWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)WiFi 6E (802.11ax)RangeGoodExcellentExcellentExcellentSpeedPoorVery GoodVery GoodExcellentCapacityPoorGoodVery GoodExcellentSecurityGoodGoodExcellentExcellentPriceExcellentGoodGoodPoorTechnical FeaturesWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)WiFi 6E (802.11ax)MU-MIMONoDownload OnlyUpload & DownloadUpload & DownloadOFDMANoNoYesYesSecurityWPA-2WPA-2WPA-3WPA-3Max QAM6425610241024Max Channel40MHz160MHz320MHz320MHzSpatial Stream300Mbps433Mbps600Mbps600MbpsMax Speed600Mbps3.4Gbps10.8Gbps20.4GbpsFrequency2.4GHz2.4GHz, 5GHz2.4GHz, 5GHz2.4GHz, 5GHz, 6GHzPowering the Teltonika TAP200 WiFi Access PointYou can use the Teltonika PR322UK7 POE Injector if you want a simple, low cost POE solution or can connect to the TAP200 to one of Teltonika POE Switches. SKU: TELTONIKA-TAP200-N Categories: Teltonika, Teltonika WiFi AP Access Points, WiFi Access Points Tags: access point, tap200, teltonika tap200, WiFi access point, wifi AP, wifi5
