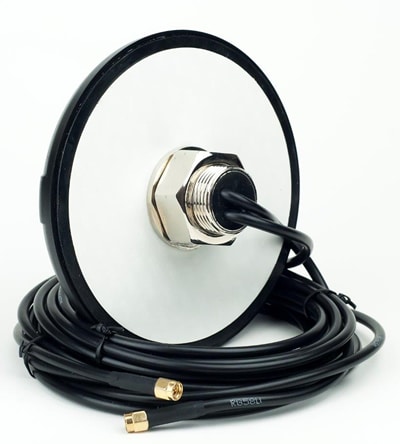

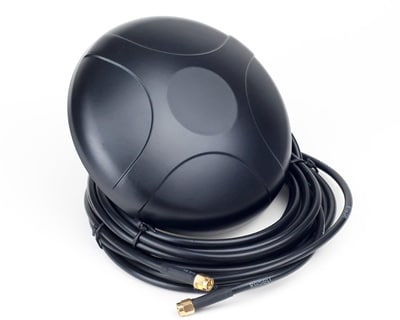

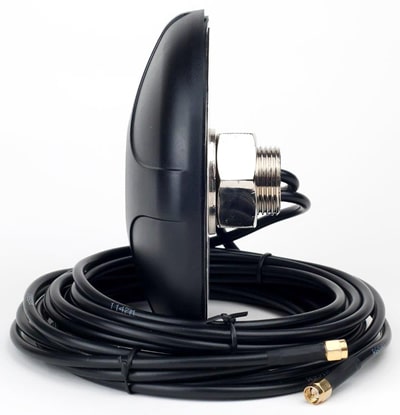

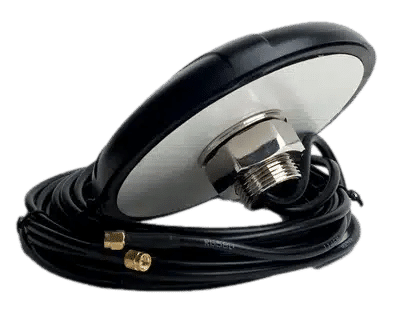

Fullband FB4GDOME – Heavy Duty DOME MiMo Puck Screw Panel Mount 4G Antenna

Fullband FB4GDOME Heavy Duty 4G Puck Antenna This is a Fullband / Wideband Panel Mount MiMo antenna ideally suited for mounting on top of metal cabinets / street cabinets. It’s robust and heavy duty construction, combined with excellent radio performance make it suitable for a wide variety of installations and it can be used with 2G, 3G and 4G cellular devices as it covers the full 2G/3G/4G network frequencies. Ideal for use with our 3G and 4G Routers.The Dome Antenna encases dual antennas so a 2G or 3G device with a single antenna port can just use one of the cables without any detriment to performance and likewise all 3G and 4G devices with two antenna ports can benefit from the MiMo antenna capability and provide antenna connectivity for both the Main and Aux antenna ports in a robust, convenient high quality antenna. FB4GDOME Technical SpecificationFrequency : 800/900/1800/2100/2600MHz VSWR : 2.0 Peak Gain : 3dBi F/B ratio : 8dBi Polarization Type : Vertical Rated Power : 50w Input Impedance : 50 OhmMechanical parameter Connector Type : 2 x SMA straight male Cable type : 2 x RG58 Length :3 Meters Water proof level : IP67 Mounting method : Screw Mounting Hole Diameter : 25mm (M25) Dimensions : D143mm x 32mm Radome Material : ABS Weight : 1Kg Recommended For :-– 3G / 4G CCTV Installations – Digital Signage- Traffic Management – Boats / Marine – Vehicle Roof Mounting SKU: FULLBAND-FB4GDOME-N Categories: 4G Antennas, Fullband 4G Antennas, Fullband Antennas, Omni-Directional 4G Antennas, Screw / Panel Mount 4G Antennas Tags: 2x2 mimo, 4g antenna, dome antenna, FB4GDOME, fb4gdome heavy duty antenna, fullband, mimo antenna, panel mount 4g, screw mount 4g antenna Brand: Fullband
