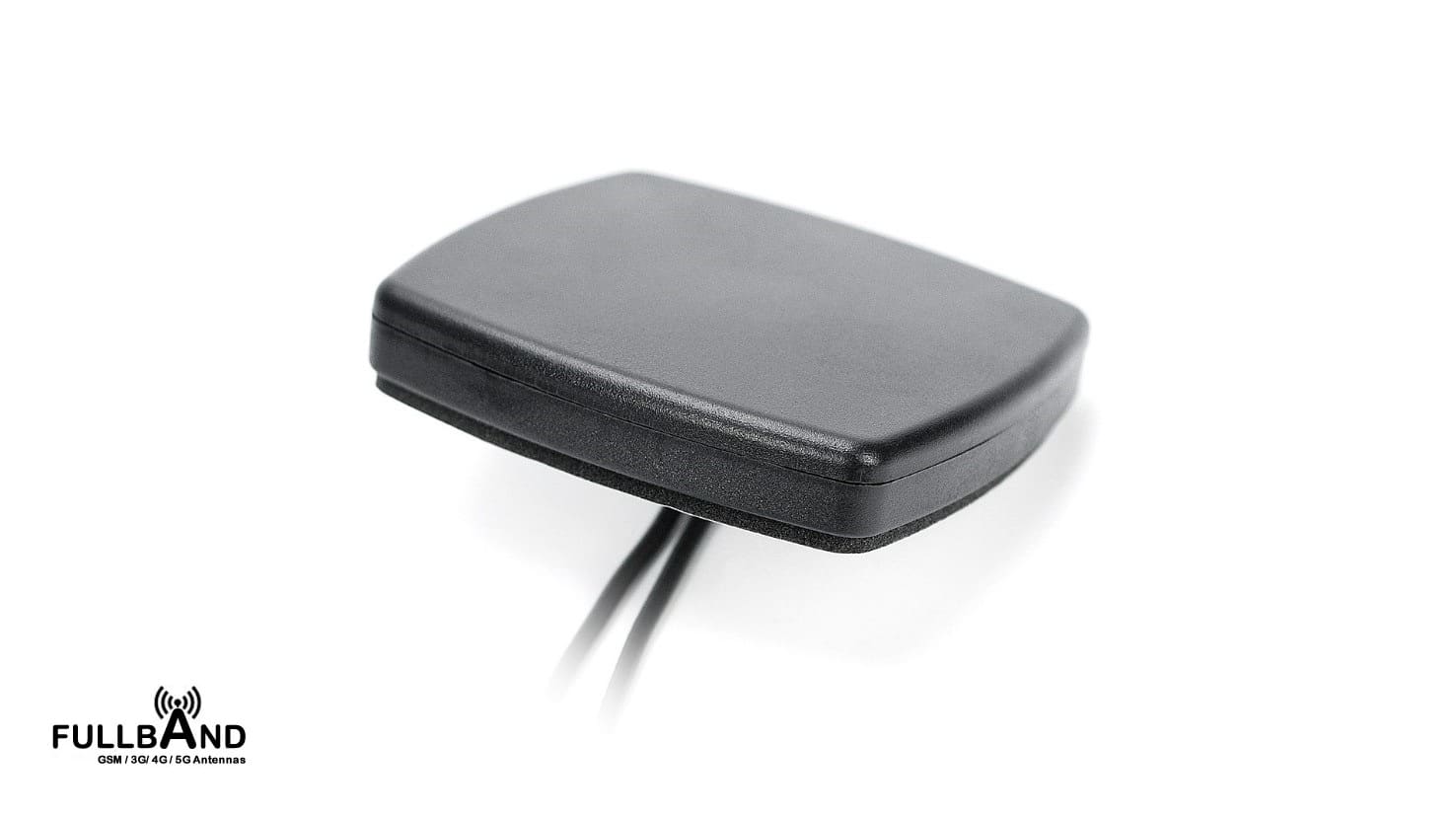

Fullband FB4GPUCK-2 4G 2×2 MIMO Screw / Panel Mount Puck Antenna 4dBi Peak Gain 2.5m cable SMA Male
$ 22.65
Categoría:

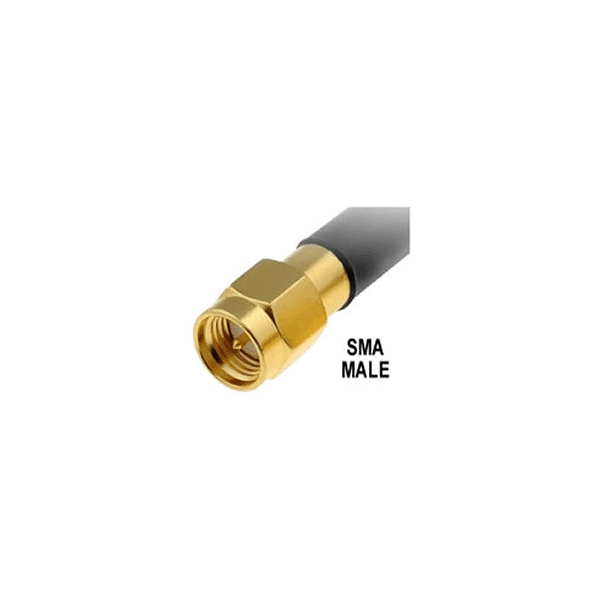

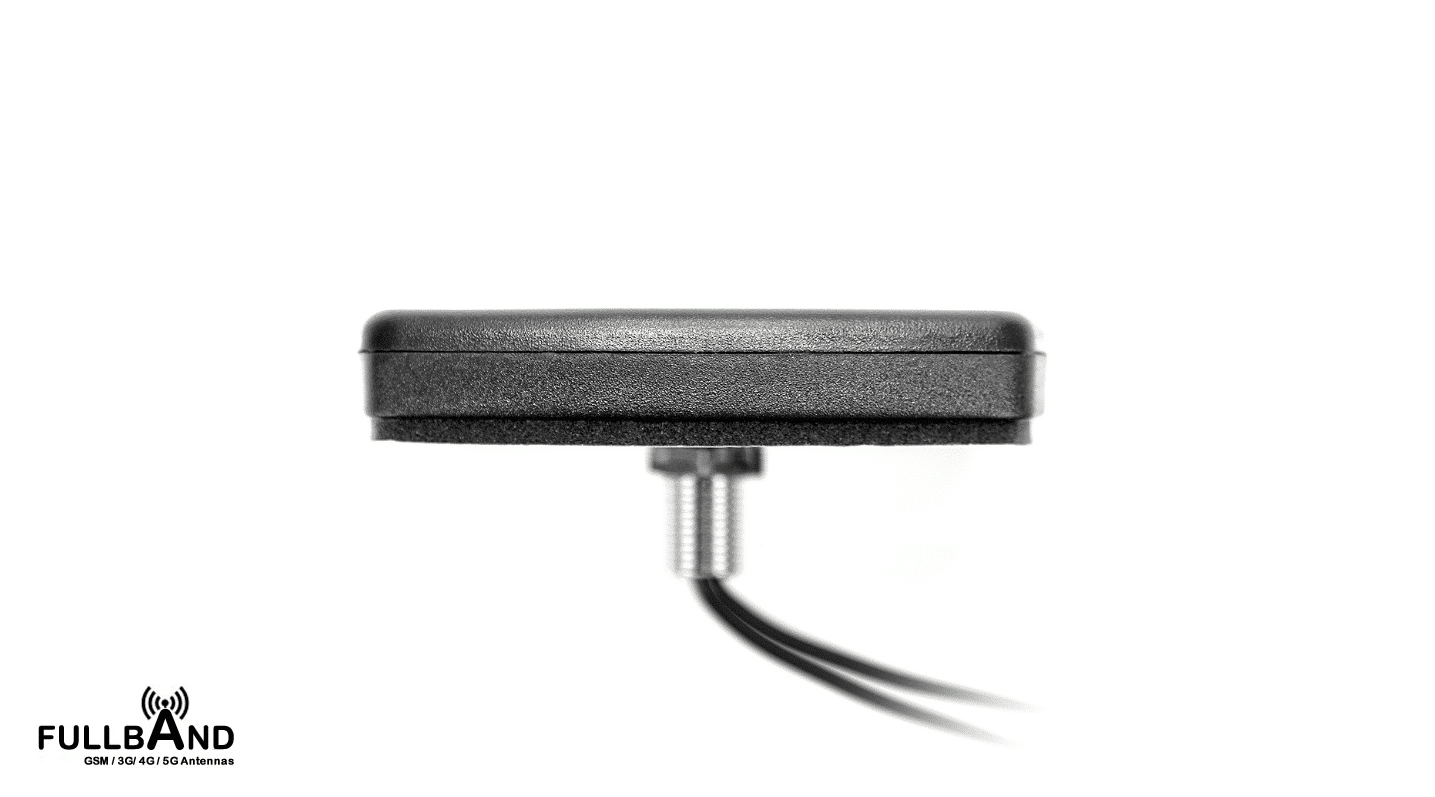

Fullband FB4GPUCK-2 4G Puck Screw Mount AntennaThe Fullband 4G Puck Antenna is a tough and durable 2G/3G/4G Wideband Mobile Broadband / Cellular puck antenna with 4dBi gain.The antenna is a screw-mount antenna. The cables exit is on the underside of the antenna and once mounted is totally enclosed and secure and the antenna has a self adhesive foam backing to provide a waterproof seal. The antenna is secured in place by a nut that is tightened from underneath.The Fullband FB4GPUCK-2 is ideal for metering, telemetry and telematics applications where a discrete antenna is required, but performance cannot be compromised and is ideal for use with a wide range of 4G Routers.Key Technical FeaturesOmni-Directional 4G LTE-698MHz 698MHz – 2700MHz (698-960, 1710-2170, 2500-2700 MHz) Peak Gain 4dBi IP67 rated Screw Mount Linear Polarisation Connector Type: SMA Male Cable Length: 2.50m Dimensions: 80 x 74 x 14.7mmElectrical and Antenna CharacteristicsPolarisation: Linear Frequency: 698-2700 MHz Peak Gain: 4.4dBi Power Handling: 25W Impedance: 50W Radiation Pattern: Omni-Directional Max Input Power (W): 35 Connector Type: SMA-Male Cable Length: 2.5m Cable Type: LL100 Standards: 4G/3G/2GEnvironmental and Mechanical SpecificationsDimensions (mm): 80 x 74 x 14.7mm Radome: ABS Ground plane independent Operating Temp (°C): -40 to 85 Storage Temp (°C): -40 to 85 Mounting Type: Screw 19mm Thread Compliance: RoHS SKU: FULLBAND-FB4GPUCK-2-N Categories: 4G Antennas, Fullband 4G Antennas, Fullband Antennas, Omni-Directional 4G Antennas, Screw / Panel Mount 4G Antennas, Smart Meter 4G Antennas Tags: 2x2 4g antenna, 2x2 mimo antenna, 4g puck antenna, 4g screw mount antenna, FB4GPUCK, FB4GPUCK-2, smart meter antennaQuantity based pricing tableMinMaxUnit Price20 49£17.5050 And more.£16.50 Brand: Fullband
