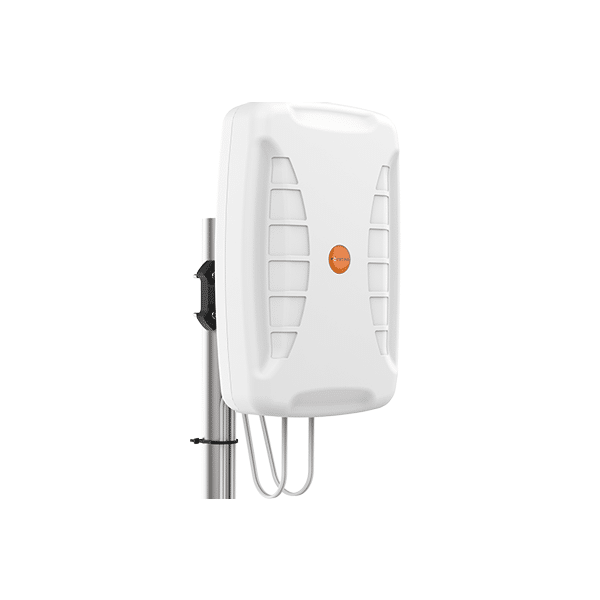

Poynting XPOL-24 Directional 5G AntennaThe Poynting XPOL-24 (A-XPOL-0024-V1-01) is a heavy-duty, wideband, uni-directional antenna designed for demanding 4G and 5G installations. This V1-01 version includes two twin-cables fitted at the factory providing four SMA-male connectors, each 5 metres in length, ready for direct connection to any router with four cellular antenna ports.With support for all key 4G and 5G frequency bands from 617 MHz up to 4200 MHz, the XPOL-24 delivers exceptional performance in rural, suburban and industrial environments where improving signal quality is essential. Its high-gain panel architecture and cross-polarised 4×4 MIMO design provide significantly improved throughput, stronger uplink performance and far greater link stability when compared with standard 2×2 antennas or internal router paddles.The enclosure is built from UV-stable materials, fully IP65 rated, and supplied with a robust pole/wall mounting kit suitable for harsh outdoor conditions. This makes it ideal for permanent fixed-line replacement, industrial M2M connectivity, CCTV backhaul, agricultural deployments or any site that relies on stable and high-bandwidth mobile connectivity.The V1-01 cable variant is particularly installer-friendly. There is no need for extra patch cables, adapters or pigtails – simply mount the antenna, run the twin-cables inside and connect all four SMA ports to the router.Key Technical Highlights• Frequency range: 617–960 MHz, 1710–2700 MHz, 3400–4200 MHz• Peak gain: up to 11 dBi depending on band• 4×4 MIMO cross-polarised panel array• Two twin-cables (2× HDF-195 twin leads) at 5 m length• Four SMA-male connectors• IP65 weatherproof enclosure• UV-stable ASA housing• Pole or wall mount (hardware included)• Operating temperature: –40 °C to 80 °C• Ideal for 4×4 5G routers, multi-carrier and CA-heavy setupsTypical Applications• 5G fixed wireless access (FWA)• Rural broadband and long-distance cellular links• 4G/5G industrial IoT and M2M systems• CCTV remote monitoring and security networks• Building management systems and telemetry• Agricultural connectivity and sensor networks• Enterprise 4×4 MIMO router installations• Remote cabins, offices, outbuildings and temporary sitesWhy Choose the A-XPOL-0024-V1-01 Version• Full 4×4 support – perfect for high-end routers needing four antenna feeds• Factory-fitted twin-cables – no adapters or additional patch leads required• Consistent performance across wide spectrum – suitable for all UK mobile networks• Directional gain – focuses energy toward the mast for stronger signal and higher throughput• Robust construction – built for permanent outdoor use in harsh UK environments• Installer friendly – simplified cable routing, clear mounting hardware, reliable connectors• Future-proof – covers today’s 5G bands and upcoming mid-band deployments SKU: A-XPOL-0024-V1-01-N Categories: 4x4 MiMo 5G Antennas, 5G Antennas, Directional Antennas, Poynting Tags: 4g antenna, 4x4 mimo antenna, 5G antenna, 5m cable antenna, a-xpol-0024-v1-01, cellular antenna, directional antenna, high gain 5g antenna, industrial antenna, mimo panel antenna, outdoor antenna, poynting, sma antenna, twin cable antenna, xpol-24, xpol24 Brand: Poynting
