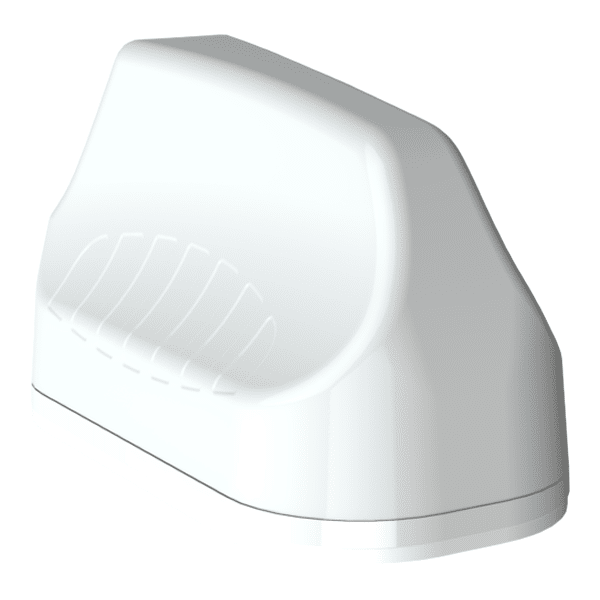

A-MIMO-3-V2-15 – Poynting 5-IN-1 High Performance Multi Frequency Antenna LTE, Dualband WiFi, GPS – WHITE

The MIMO-3-V2-15 from Poynting consists of a 5-in-1 antenna system within a single housing, providing 2x Cellular, 2x Wi-Fi and a GPS/GLONASS. This antenna is specifically designed for the transportation and marine industry. The 2x Cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 690MHz to 2700MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. This antenna, due to its wide band capabilities, can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 3.8GHz.The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna with 2×2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40 degrees. The antenna exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is important for this type of antenna, especially for the transportation and marine market. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band offered by this antenna.This antenna meets the e-Mark E1 ECE R10v6 Certification and homologation.Antenna OverviewLTEWiFi DualbandGPSPorts1&23&45SISO/MIMO2×2 MIMO2x2MIMOn/aFrequency bands410 MHz -3800MHz2.4 -2.5& 5-6GHz1575.42MHz/1600MHzPeak Gain5.8dBi7dBi21dBiCoax Cable TypeTwin HDF-195Twin HDF-195RTK-031Coax Cable Length2m2m2mConnector TypeSMA PlugSMA PlugSMA PlugPackage ContentsA-MIMO-0003-V2-15*Mounting brackets: Threaded Spigots (Up to 60mm clamping thickness), Adhesive Surface Mounting & Optional Magnetic MountAdapters RPSMA(m) To SMA (f) Product dimensions 253 mm x 128 mm x 144 mm SKU: POYNTING-A-MIMO-3-V2-15-WHT-N Categories: 2x2 MiMo 5G Antennas, 4G Antennas, 5G Antennas, Marine Antennas, Omni-Directional 5G Antennas, Poynting, Screw / Panel Mount 4G Antennas, Screw / Panel Mount 5G Antennas, Vehicle 4G Antennas, Vehicle 5G Antennas, WiFi Antennas Tags: 2x2 mimo antenna, A-MIMO-3-V2-15, marine 4g antenna, marine 5g antenna, marine antenna, poynting A-MIMO-3-V2-15, vehicle 4g antenna, vehicle 5g antenna
