Teltonika RUT950 4G LTE Router

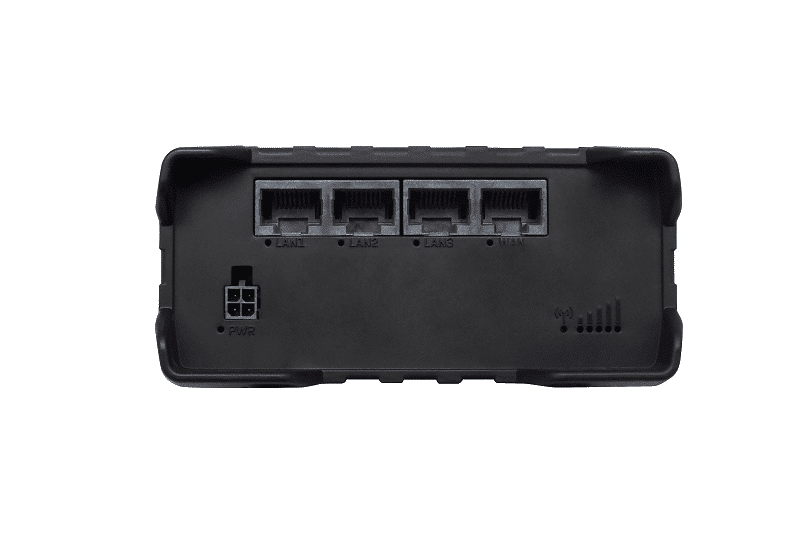

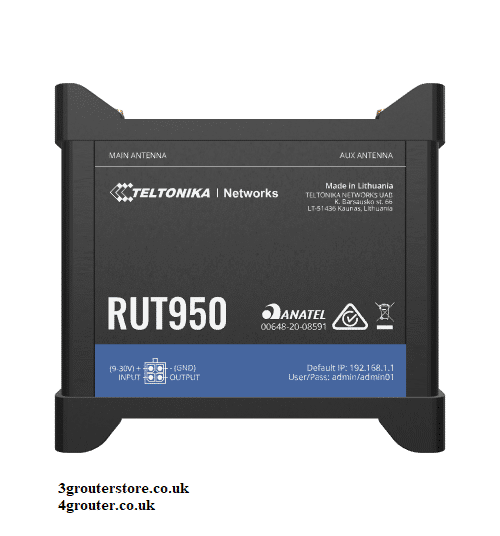

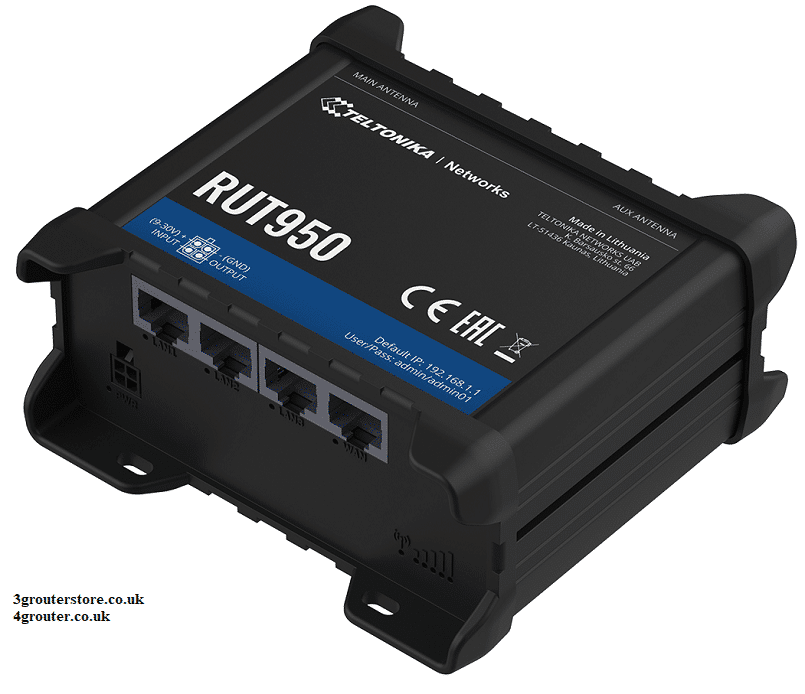

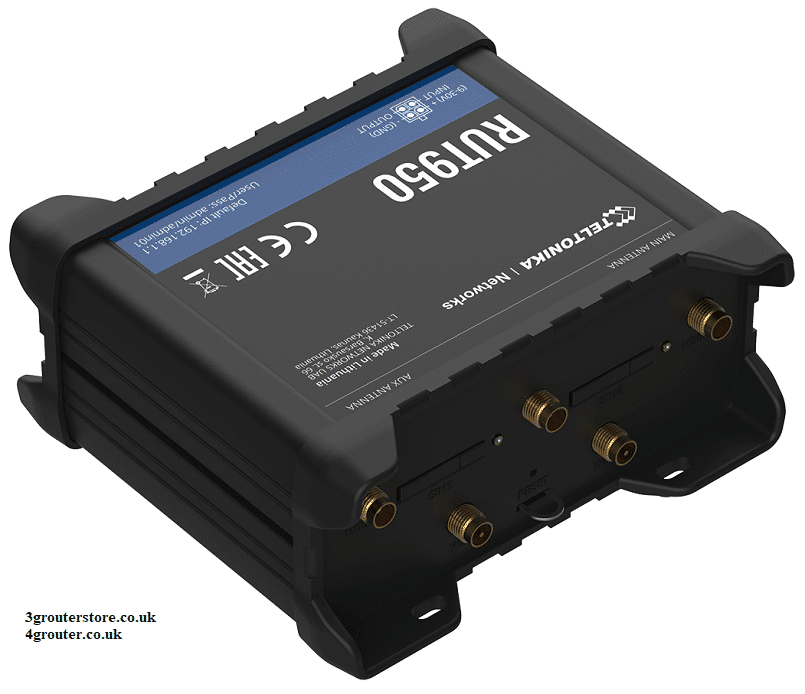

Teltonika RUT950 4G LTE RouterRUT950 4G router from Teltonika is a professional, industrial LTE Wi-Fi router with embedded 4G modem for IoT applications. this Ruggedized 4G mobile router delivers high performance cellular communication in harsh and wide operating temperature range environments. Remote management platform RMS ready to deliver the value of M2M and IoT networking applications. This Teltonika Router is equipped with four ethernet ports, external 2xSIM holders, digital input/output and signal strength status LEDs indicators. External SMA antenna connectors make it possible to attach desired antennas. RUT950 is a professional cat4 LTE router empowered by RutOS a unified operating system for all Teltonika routers for the most demanding mobile networking applications. Ensure your business continuity with Dual-SIM and 4G failover.RUT950 FeaturesMobileMobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps.SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protectionStatus Signal strength, SINR, RSRP, RSRQ, Bytes sent/receivedBridge Direct connection (bridge) between mobile ISP and device on LANSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPBlack/White list Operator black/white listMultiple PDN (optional) Possibility to use different PDNs for multiple network access and servicesBand management Band lock, Used band status displayWIRELESSWireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)WiFi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC FilterWiFi security WPA2-Enterprise – PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separationSSID SSID stealth mode and access control based on MAC addressWiFi users Up to 100 simultaneous connectionsHotspot Captive portal (Hotspot), internal/external Radius server , built in customizable landing pageETHERNETWAN 1 x WAN (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIXLAN 3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIXNETWORKRouting Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTTVoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewall Port forward, traffic rules, custom rulesDHCP Static and dynamic IP alocation, DHCP RelaydQoS Traffic priority querying by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNS Supported >25 service providers, others can be configured manuallyNetwork backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic FailoverLoad balancing – The RUT950 router can balance your internet traffic over multiple WAN connections (eg Wired WAN and 4G)NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)SECURITYAuthentication Pre-shared key, digital certificates, X.509 certificatesFirewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-TAttack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)WiFi security WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separationVLAN Port based and tag based VLAN separationMobile quota control Set up custom data limits for both SIM cardsWEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites onlyAccess control Flexible access control of TCP, UDP, ICMP packets, MAC address filterVPNOpenVPN Multiple clients and server can be running simultaneously, 12 encryption methodsOpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBCIPsec IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)GRE GRE tunnelPPTP, L2TP Client/Server services can run simultaneouslyStunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs’ code.SSTP SSTP client instance supportMONITORING & MANAGEMENTWEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel logFOTA Firmware update from sever, automatic notification.SSH SSH (v1, v2)SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GETTR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystemsMQTT MQTT Broker, MQTT publisherSNMP SNMP (v1, v2, v3), SNMP trapJSON-RPC Management API over HTTP/HTTPSMODBUS MODBUS TCP status/controlRMS Teltonika Remote Management System (RMS)SYSTEM CHARACTERISTICSCPU Atheros Wasp, MIPS 74Kc, 550MHzRAM 128MB, DDR2FLASH memory 16MB SPI FlashFIRMWARE / CONFIGURATIONRUT950 WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore pointFOTA Update FW/configuration from serverRMS Update FW/configuration for multiple devicesKeep settings Update FW without loosing current configurationFIRMWARE CUSTOMIZATIONOperating system RutOS (OpenWrt based Linux OS)Supported languages Busybox shell, Lua, C, CDevelopment tools GPL package with build environment provided If you need Serial Interfaces or Digital IO ports then we recommend the Teltonika RUT955 4G Router. SKU: TELTONIKA-RUT950-N Categories: 4G CCTV, 4G Routers, Teltonika, Teltonika 4G Routers Tags: 3G, 4G, 4G LTE, 4g lte m2m router, 4G LTE Router, 4G Router, 4g wireless broadband, failover 4g router, industrial 4g lte router, industrial 4g router, industrial grade 4g router, industrial lte router, iot router, lte, lte router, M2M, m2m 4g router, router teltonika, RUT950, Teltonika, teltonika 4g, teltonika dual sim, teltonika RUT950, Teltonika uk, vpn 4g router, wireless 4g router
