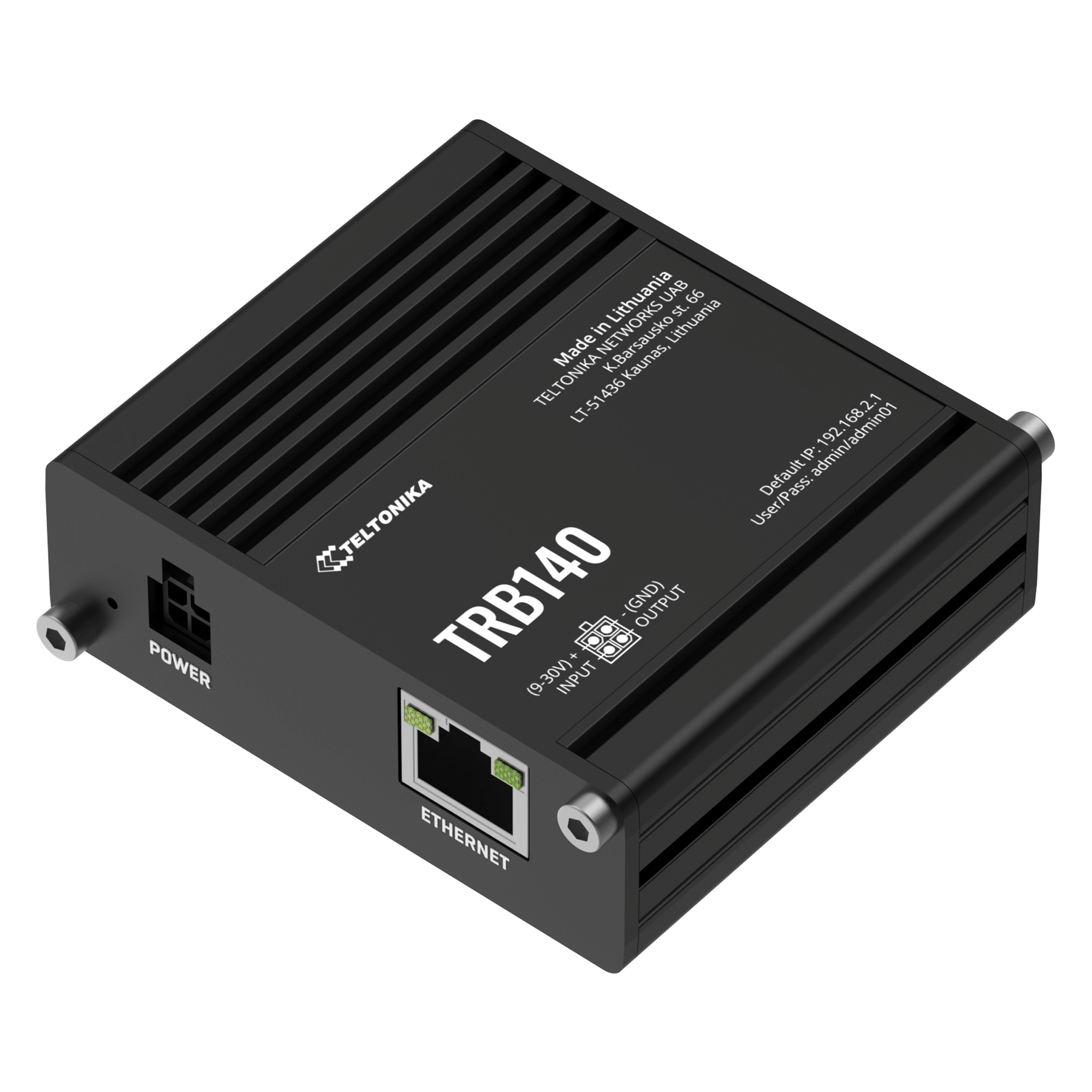

Teltonika TRB140 Industrial Rugged 4G/LTE CAT4 Gateway

The Teltonika TRB140 is a compact industrial 4G LTE gateway with a Gigabit Ethernet port and CAT4 LTE Modem. This is ideal for applications where a sole device needs internet connectivity. The Teltonika TRB140 is an industrial unit with robust construction with a wide range of software features such as SMS control, Firewall, Open VPN, IPSec, RMS and FOTA support.The Teltonika TRB140 is less expensive than 4G routers as it does not perform any routing. Instead it is ideal as a simple solution to provide a 4G internet connection to a network that doesn’t have one. Alongside an external 4G LTE antenna the TRB140 can be used as a WAN for an ethernet router, which would do the routing.The TRB140 also works well alongside a Raspberry Pi or standalone computer. The TRB140 can also be powered by passive POE between 9-30VDC but isn’t compatible with IEEE802.3af and 802.3at standards.The most common antenna bought with this product is the Fullband GXS606.Mobile Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. SMS/Call SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list Band management Band lock, Used band status display APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Passthrough Gateway assigns its mobile WAN IP address to another device on LAN Multiple PDN Possibility to use different PDNs for multiple network access and servicesEthernet LAN 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossoverNetwork Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) Routing Static routing Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forwards, traffic rules, custom rules DHCP Static and dynamic IP allocation QoS / Smart Queue Management (SQM) (planned) Traffic priority queuing by source/destination, service, protocol or port DDNS Supported >25 service providers, others can be configured manually SSHFS Possibility to mount remote file system via SSH protocolSecurity Authentication Pre-shared key, digital certificates, X.509 certificates Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) Mobile quota control Set up custom data limits for SIM card WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filterVPN OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support ZeroTier ZeroTier VPN WireGuard WireGuard VPN client and server supportModbus MODBUS TCP SLAVE ID filtering Respond to one ID in range [1;255] or any Allow remote access Allow access through WAN Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality MODBUS TCP MASTER Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII MQTT GATEWAY Gateway Allows sending commands and receiving data from MODBUS Master trough MQTT broker DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTT, KinesisMonitoring & Management WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log FOTA Firmware update from sever, automatic notification SSH SSH (v1, v2) SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT MQTT Broker, MQTT publisher SNMP SNMP (v1, v2, v3), SNMP trap JSON-RPC Management API over HTTP/HTTPS MODBUS MODBUS TCP status/control RMS Teltonika Remote Management System (RMS)IOT Platforms Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub serverSystem Characteristics CPU ARM Cortex-A7 1.2 GHz CPU RAM 128 MB (50 MB available for userspace) FLASH storage 512 MB (200 MB available for userspace)Firmware / Configuration WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup FOTA Update FW/configuration from server RMS Update FW/configuration for multiple devices Keep settings Update FW without losing current configurationFirmware Customisation Operating system RutOS (OpenWrt based Linux OS) Supported languages Busybox shell, Lua, C, C Development tools SDK package with build environment providedInput/Output Configurable I/O 2 x Configurable Inputs/Outputs. Digital input 0 – 6 V detected as logic low, 8 – 30 V detected as logic high. Open collector output, max output 30 V, 300 mA (not available in TRB140*2****) Output control HTTP POST/GET, Schedule Events SMS, EMAIL I/O juggler Allows to set certain I/O conditions to initiate eventPower Connector 4 pin industrial DC power socket Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards Power consumption < 5 WPHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM) Ethernet 1 x RJ45 port, 10/100/1000 Mbps I/Os 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB140*2****) USB 1 x Virtual network interface via micro USB Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V Power 1 x 4 pin DC connector Anntena 1 x SMA for LTE Reset Reboot/User default reset/Factory reset buttonPhysical Specs Casing material Aluminum housing Dimensions (W x H x D) 74.5 x 25 x 64.4 mm Weight 134 g Mounting options Bottom and sideways DIN rail, Flat surfaceOperating Environment OPERATING ENVIRONMENT Operating temperature -40 °C to 75 °C Operating humidity 10 % to 90 % non-condensing Ingress Protection Rating IP30Regulatory & Approvalst Regulatory CE/RED, EAC, RoHS, WEEE EMI Standards Draft ETSI EN 301 489-1 V2.2.0, Draft ETSI EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 Do you need to use the TRB140 4G Gateway in IP Passthrough Mode?We have prepared a quick video guide showing how to use the TRB140 / TRB500 gateways with a fixed IP SIM in IP passthrough mode.  SKU: TELTONIKA-TRB140-N Categories: 4G Routers, IoT 4G Gateway, IoT Gateways, Teltonika, Teltonika 4G Routers, Teltonika IoT Gateways Tags: 4g iot, 4G M2M, 4G modem, Industrial IOT, Industrial M2M, LTE CAT4, M2M router, Teltonika, Teltonika M2M, Teltonika TRB140, TRB140 Brand: Teltonika
