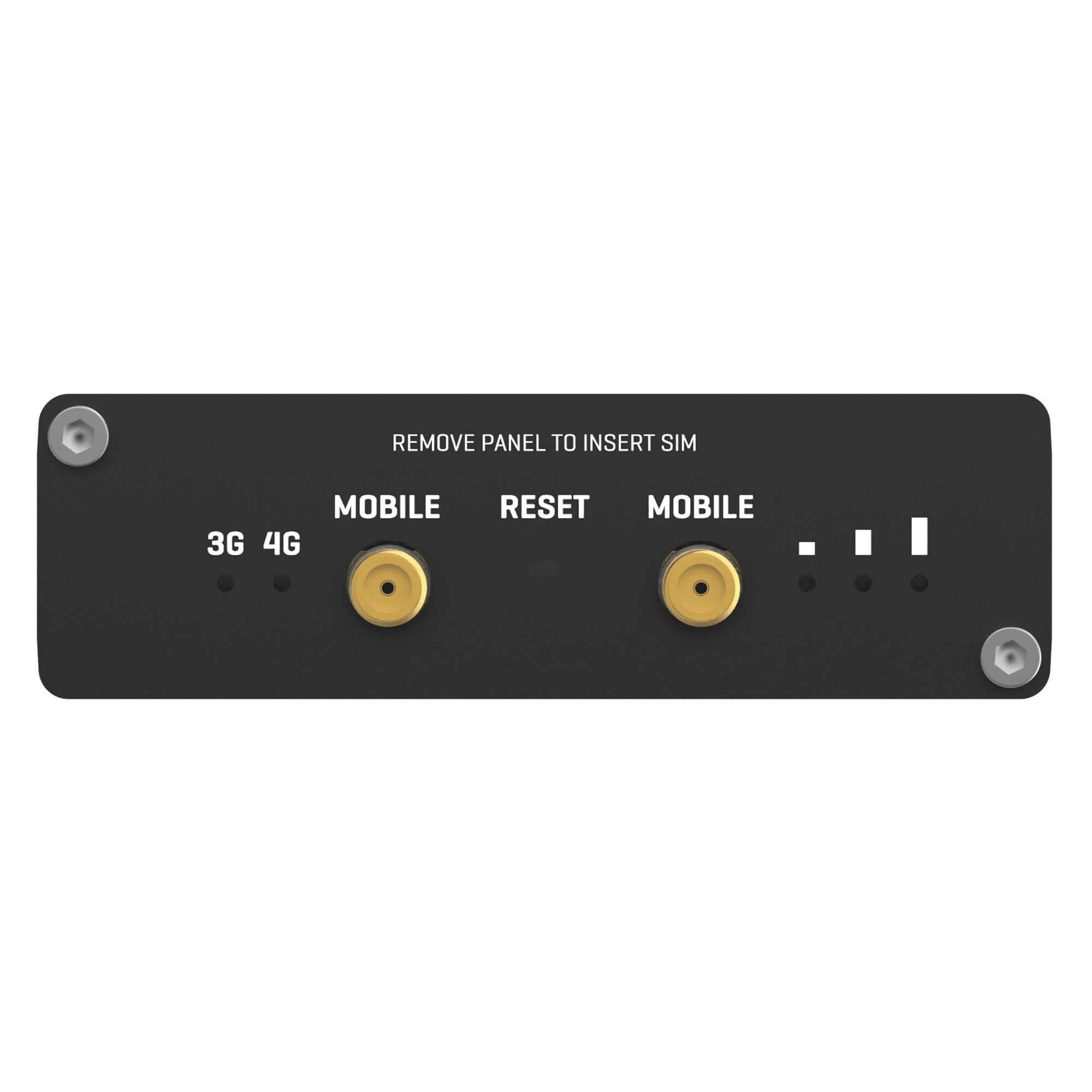

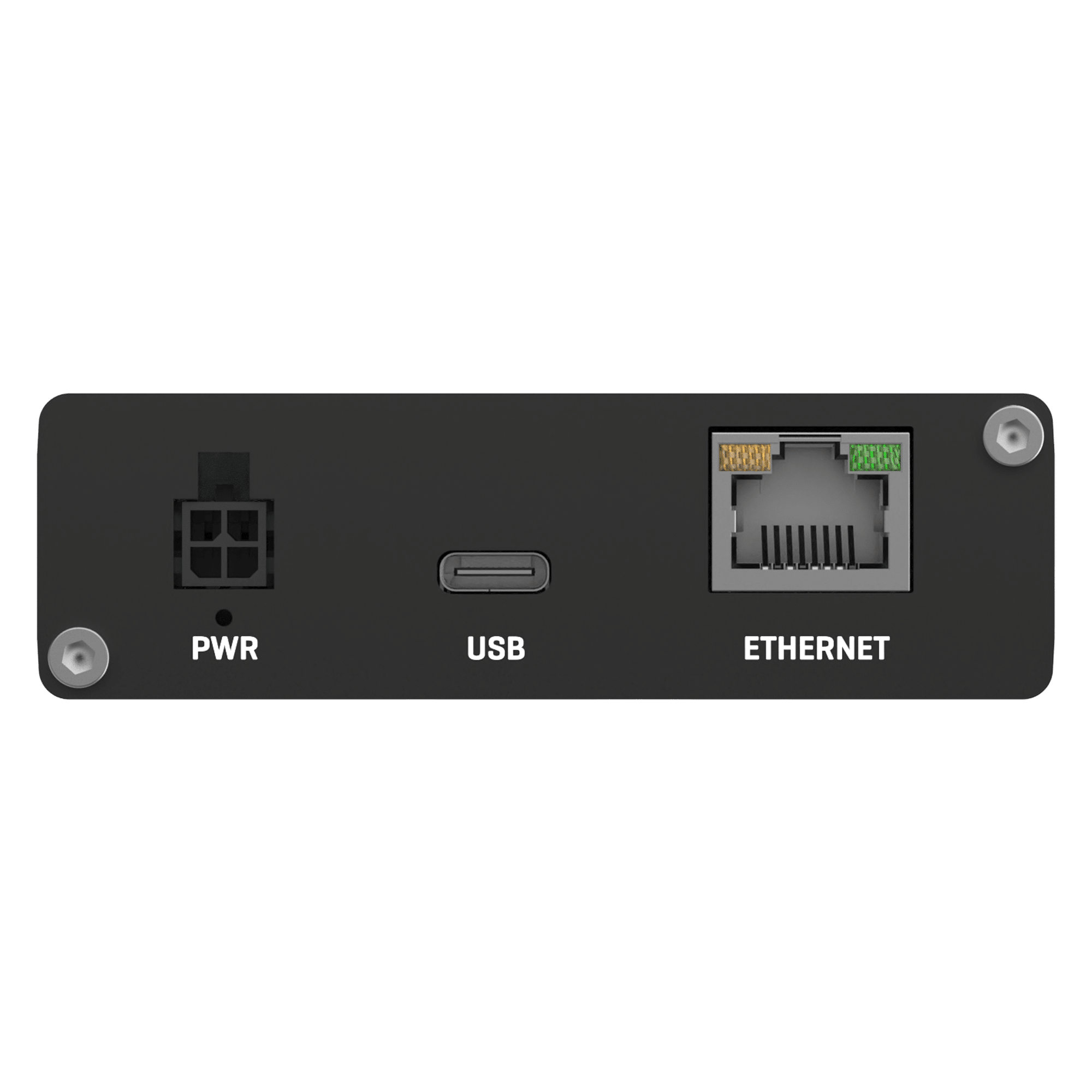

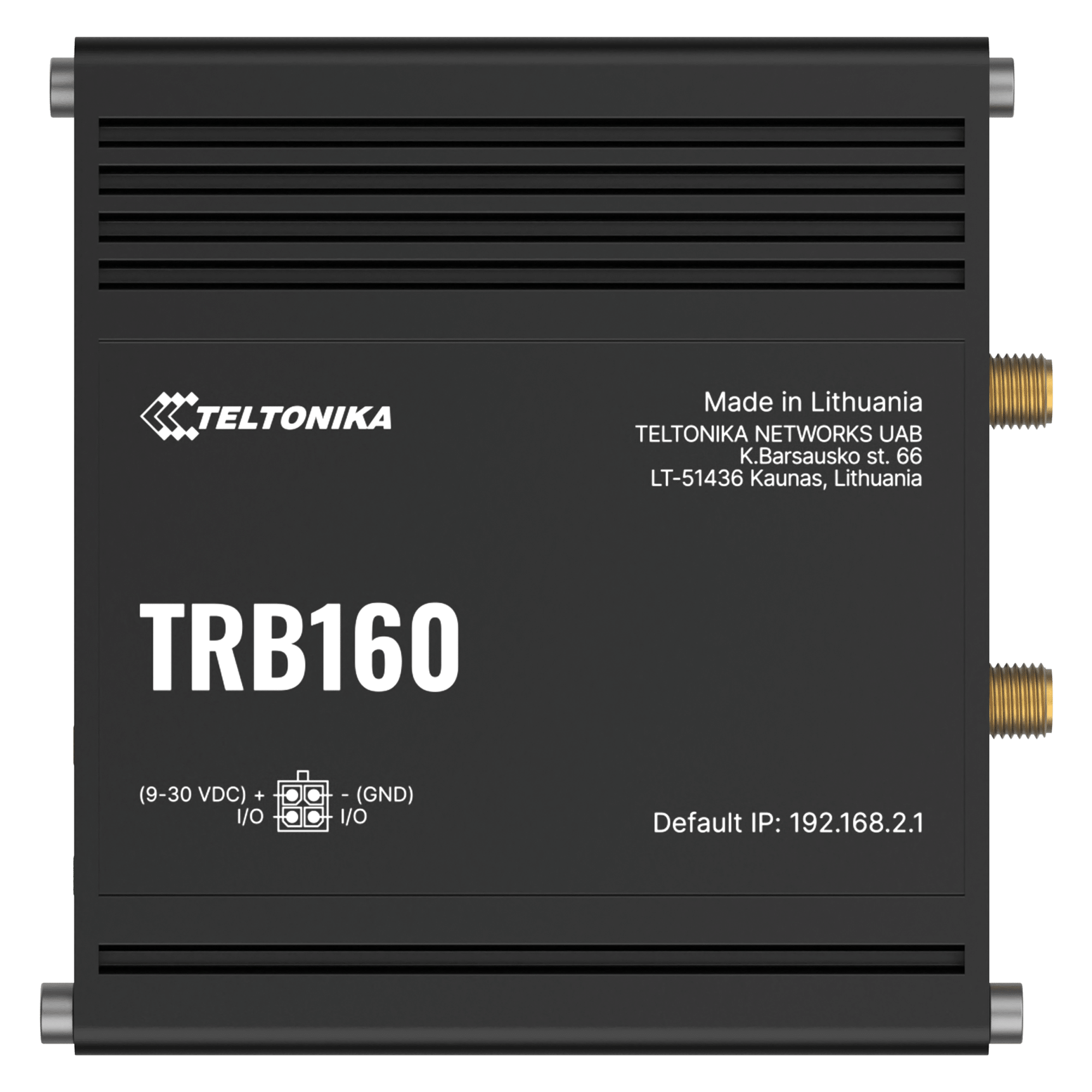

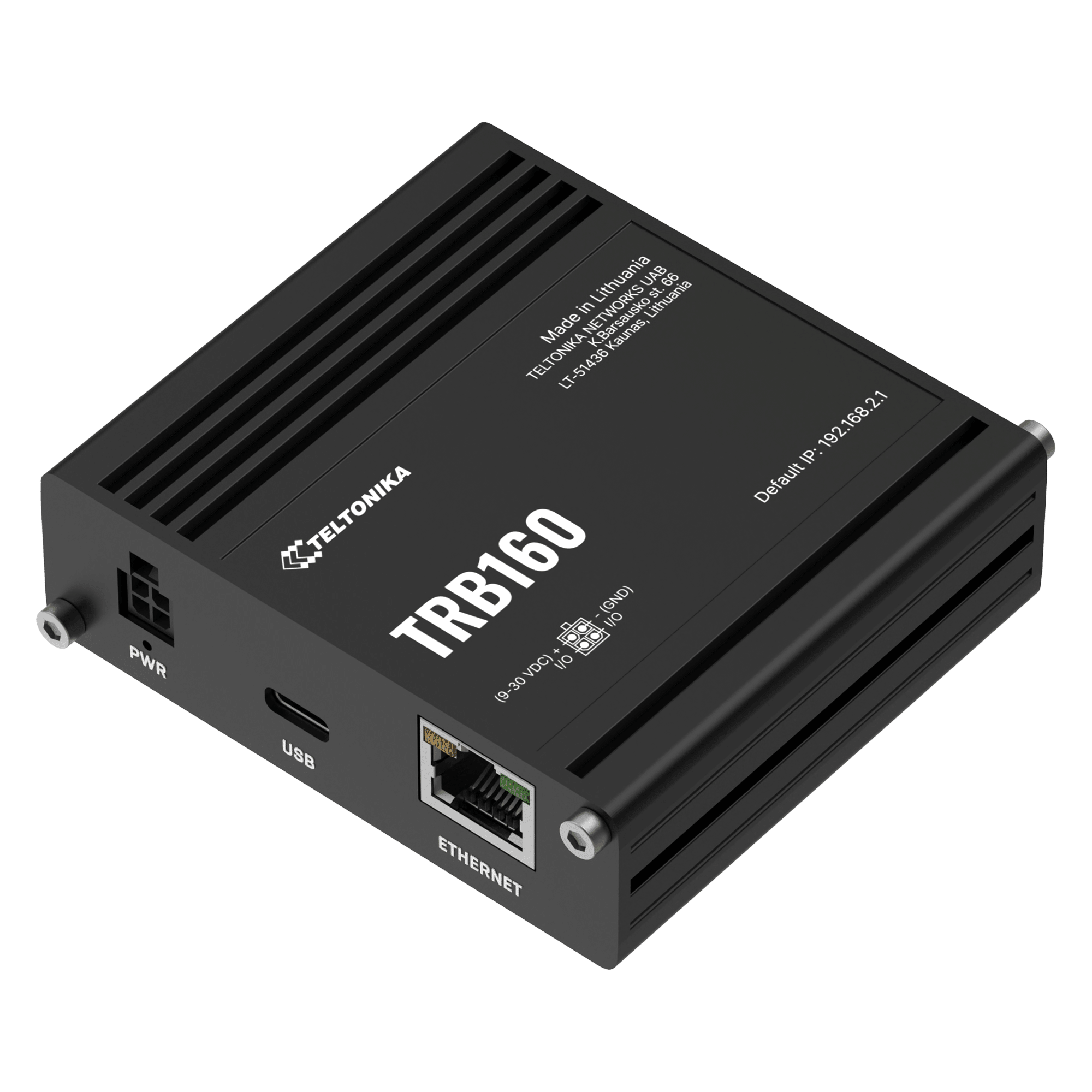

The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.LTE CAT 6 – Cellular speeds of up to 300 Mbps with carrier aggregationUSB Type-C – For simultaneous powering and network data provisionPROTOCOLS – OPC UA, Modbus, Data to Server, MQTT, DNP3, DLMS, and moreCOMPACTNESS – Small size, easy installationSpecificationMobileMobile module4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps3GPP ReleaseRelease 12StatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCIDSMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white list (by country or separate operators)Multiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displaySIM PIN code managementSIM PIN code management enables setting, changing, or disabling the SIM card’s PINAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthroughRouter assigns its mobile WAN IP address to another device on LANEthernetETH1 x ETH port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossoverNetworkRoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLANVoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rules, TTL target customisationFirewall status pageView all your Firewall statistics, rules, and rule countersPorts managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so onNetwork topologyVisual representation of your network, showing which devices are connected to which other devicesDHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcardsQoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNSSupported >25 service providers, others can be configured manuallyDNS over HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPSNetwork backupMobile, VRRP, Wired options, each of which can be used as an automatic FailoverLoad balancingBalance Internet traffic over multiple WAN connectionsHotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themesSSHFSPossibility to mount remote file system via SSH protocolTraffic ManagementReal-time monitoring, wireless signal charts, traffic usage historySecurityAuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS , Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generatorFirewallPreconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)VLANPort and tag-based VLAN separationMobile quota controlMobile data limit, customizable period, start time, warning limit, phone numberWEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites onlyAccess controlFlexible access control of TCP, UDP, ICMP packets, MAC address filterSSL certificate generationLet’s Encrypt and SCEP certificate generation methodsVPNOpenVPNMultiple clients and a server can run simultaneously, 27 encryption methodsOpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256IPsecXFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)GREGRE tunnel, GRE tunnel over IPsec supportPPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec supportStunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s codeDMVPNMethod of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub supportSSTPSSTP client instance supportZeroTierZeroTier VPN client supportWireGuardWireGuard VPN client and server supportTincTinc offers encryption, authentication and compression in it’s tunnels. Client and server support.OPC UASupported modesClient, Server (planned)Supported connection typesTCPMODBUSSupported modesServer, ClientSupported connection typesTCPCustom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionalitySupported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCIIDATA TO SERVERProtocolHTTP(S), MQTT, Azure MQTTData to serverExtract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server featureMQTT GatewayModbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT brokerDNP3Supported modesStation, OutstationSupported connectionTCPDLMSDLMS SupportDLMS – standard protocol for utility meter data exchangeSupported modesClientSupported connection typesTCPCOSEMAllows to scan meter COSEM objects for automatic detection and configurationAPITeltonika Networks Web API (beta) supportExpand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.comMonitoring & ManagementWEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet statusFOTAFirmware update from server, automatic notificationSSHSSH (v1, v2)SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GETCallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/offTR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystemMQTTMQTT Broker, MQTT publisherSNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protectionJSON-RPCManagement API over HTTP/HTTPSRMSTeltonika Remote Management System (Teltonika RMS)IoT PlatformsThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network TypeCumulocity – Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actionsAzure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT HubsAWS IoT CoreUtility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionalitySystem CharacteristicsCPUQualcomm, 1.2 Ghz, ARM Cortex-A7RAM128 MBFLASH storage256 MBFirmware / ConfigurationWEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backupFOTAUpdate FWRMSUpdate FW/configuration for multiple devices at onceKeep settingsUpdate FW without losing current configurationFactory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configurationFIRMWARE CUSTOMISATIONOperating systemRutOS (OpenWrt based Linux OS)Supported languagesBusybox shell, Lua, C, C Development toolsSDK package with build environment providedGPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needsPackage ManagerThe Package Manager is a service used to install additional software on the deviceInput / OutputInputUp to 2 x Configurable digital Inputs (shared), 0 – 6 V detected as logic low, 8 – 30 V detected as logic highOutputUp to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O jugglerAllows to set certain I/O conditions to initiate eventPowerConnector1 x 4-pin industrial DC power socket1 x USB Type-CInput voltage range4-pin: 9 – 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us maxUSB Type-C: 5 VDCPoE (passive)Possibility to power up through ETH port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDCPower consumptionIdle: < 0.25 W, Max: < 3.3 WPhysical InterfacesEthernet1 x RJ45 port, 10/100/1000 MbpsI/O’s2 x Configurable I/O pins on 4-pin power connectorStatus LEDs2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LEDSIM1 x Internal SIM slot (Mini SIM – 2FF), 1.8 V/3 V, eSIM (Optional)Power1 x 4-pin power connector1 x USB Type-CAntennas2 x SMA for MobileResetReboot/User default reset/Factory reset buttonOther1 x Virtual network interface via USB Type-C (For power and network data)Physical SpecificationCasing materialAnodized aluminum housing and panelsDimensions (W x H x D)83 x 25 x 74.2 mmWeight172 gMounting optionsDIN rail, wall mount, flat surface (all require additional kit)Operating EnvironmentOperating temperature-40 °C to 75 °COperating humidity10% to 90% non-condensingIngress Protection RatingIP30 SKU: TELTONIKA-TRB160-N Categories: IoT 4G Gateway, Teltonika, Teltonika IoT Gateways Tags: 4G LTE Cat6 Gateway, CAT6 4G Gateway, Cellular Gateway, Compact IoT Gateway, DIN Rail Mount Gateway, Edge Networking Gateway, Fixed IP Gateway, Gigabit Ethernet Gateway, Industrial Automation Gateway, Industrial Connectivity, Industrial Gateway, M2M Gateway, Machine to Machine Communication, Private APN Gateway, Reliable Network Infrastructure, Remote Access Gateway, Secure IoT Connectivity, Smart City IoT Gateway, Teltonika Networks, Teltonika TRB160, TRB160, UK Industrial Networking Brand: Teltonika
