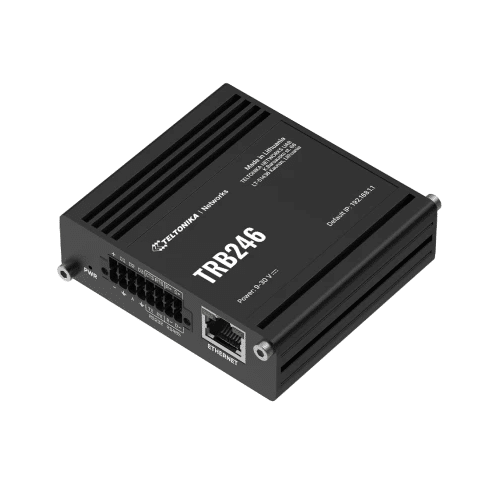

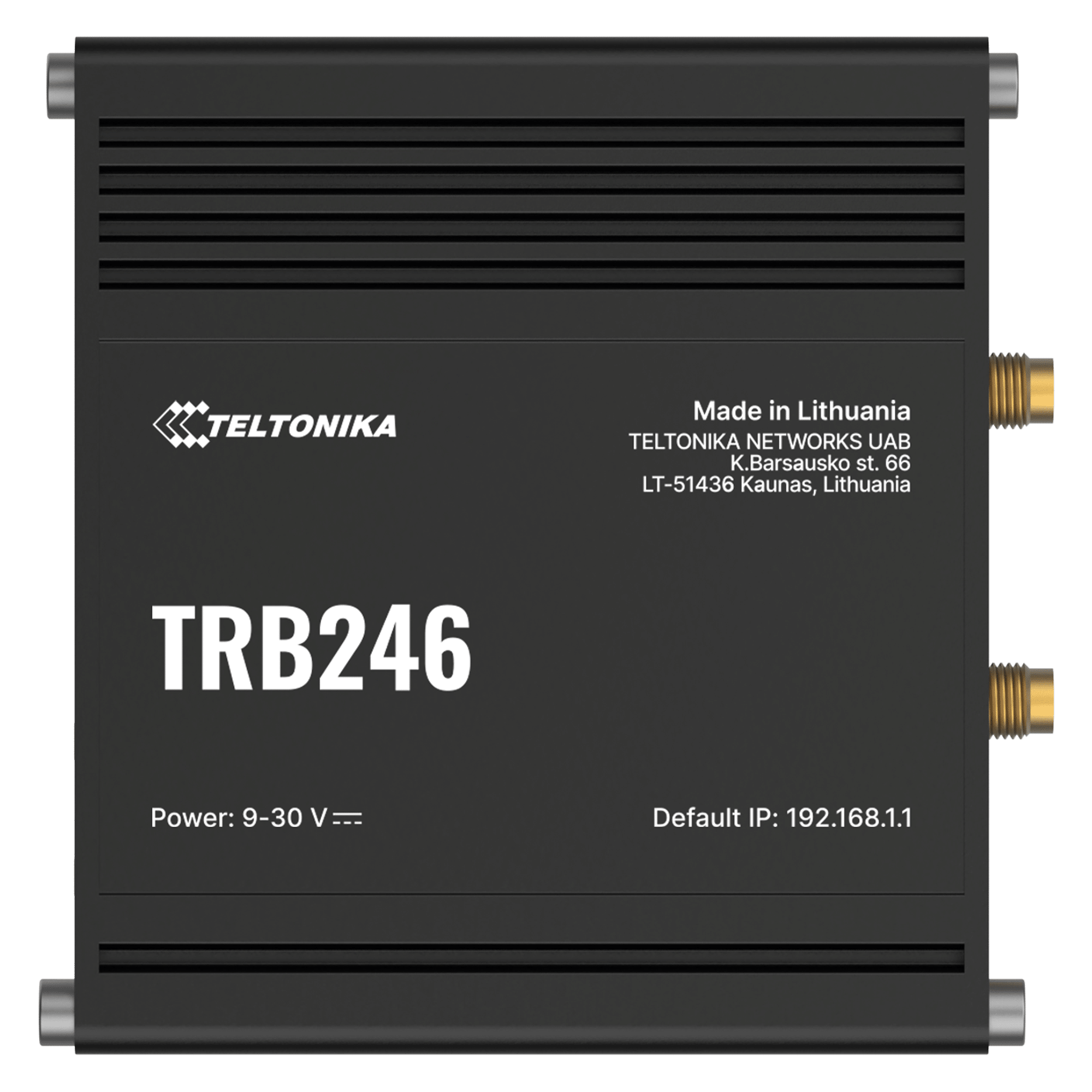

Teltonika TRB246 Industrial IoT Gateway

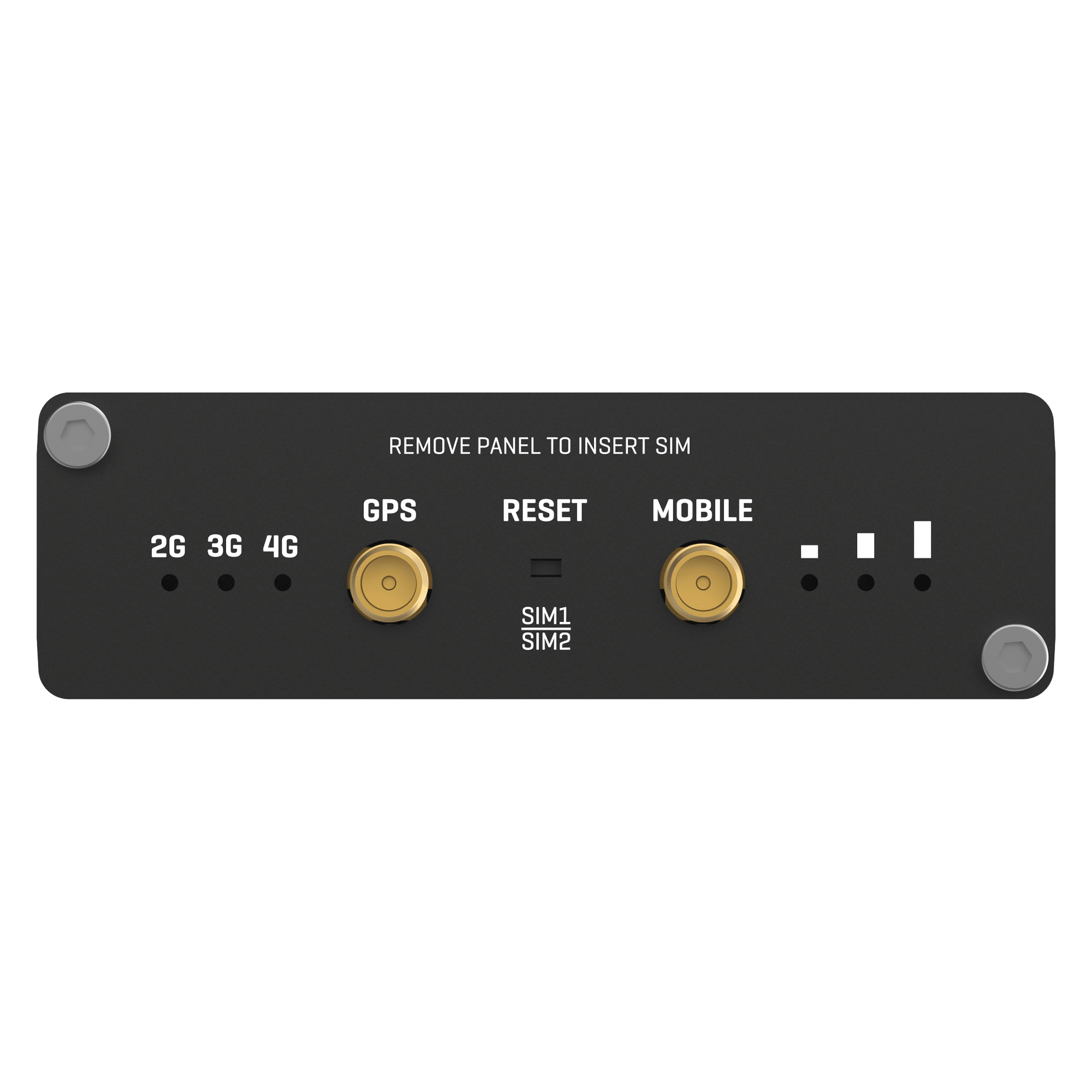

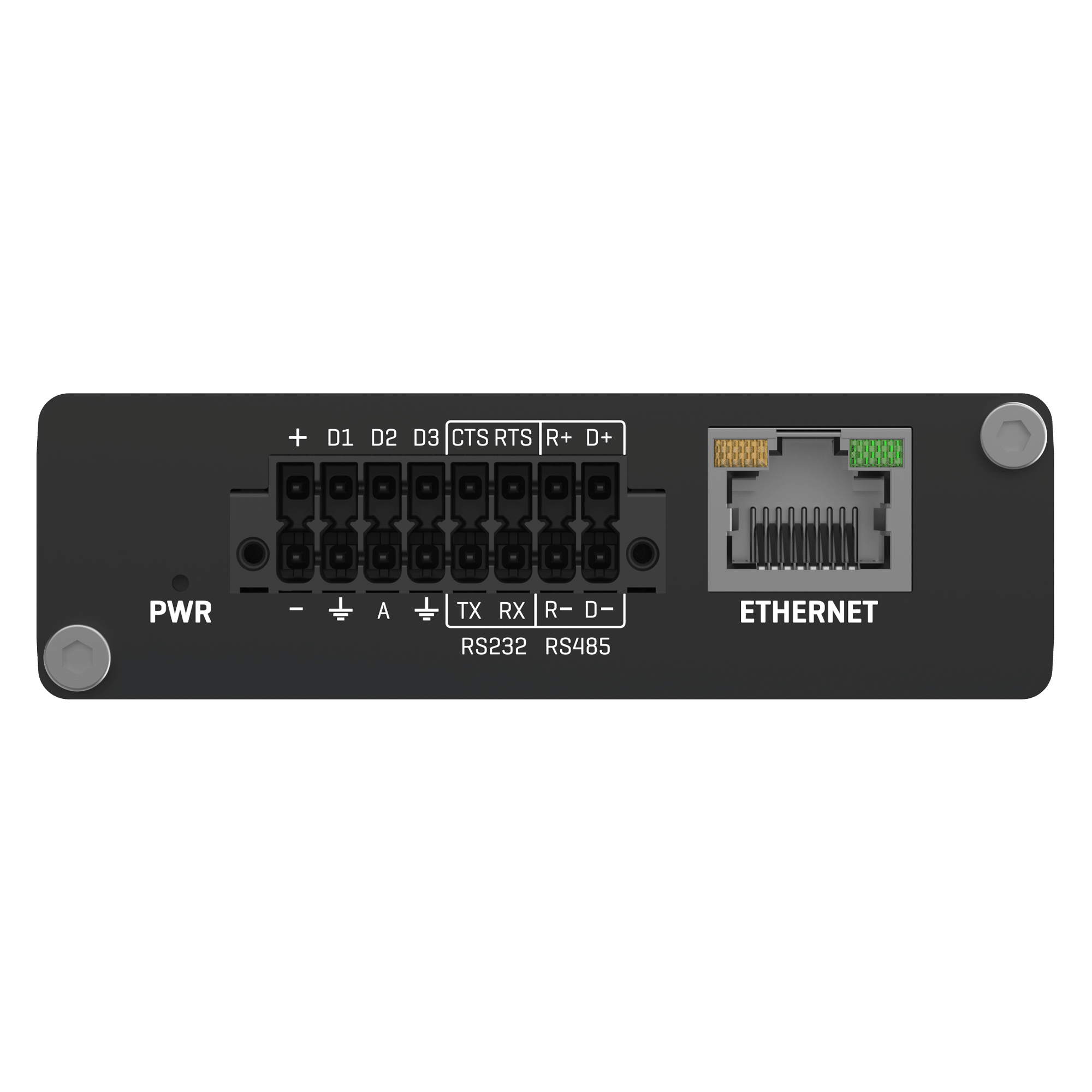

The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.CONNECTIVITY  -4G/LTE (Cat 4), 3G, 2GDUAL SIM – Auto-failover, backup WAN, and more switching scenariosINTERFACES – Ethernet, I/Os, and serial (RS232, RS485) interfaces with 16-pin terminal blockPROTOCOLS – Supports DNP3, DLMS, Modbus, and other communication protocolsSpecificationMobileMobile module4G LTE up to 150 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps; 2G up to 296 DL/236.8 UL Kbps3GPP ReleaseRelease 11SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection failStatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNCSMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white list (by country or separate operators)Multiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displaySIM idle protection serviceWhen working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until thenSIM PIN code managementSIM PIN code management enables setting, changing, or disabling the SIM card’s PINAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthroughGateway assigns its mobile WAN IP address to another device on LANEthernetEthernet1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossoverNetworkRoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLANVoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rules, TTL target customisationFirewall status pageView all your Firewall statistics, rules, and rule countersPorts managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so onNetwork topologyVisual representation of your network, showing which devices are connected to which other devicesHotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themesDHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcardsQoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNSSupported >25 service providers, others can be configured manuallyDNS over HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPSNetwork backupMobile, VRRP, Wired options, each of which can be used as an automatic FailoverSSHFSPossibility to mount remote file system via SSH protocolTraffic ManagementReal-time monitoring, wireless signal charts, traffic usage historySecurityAuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS , Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generatorFirewallPreconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)VLANTag-based VLAN separationMobile quota controlMobile data limit, customizable period, start time, warning limit, phone numberWEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites onlyAccess controlFlexible access control of SSH, Web interface, CLI and TelnetSSL certificate generationLet’s Encrypt and SCEP certificate generation methodsVPNOpenVPNMultiple clients and a server can run simultaneously, 27 encryption methodsOpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256IPsecXFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)GREGRE tunnel, GRE tunnel over IPsec supportPPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec supportStunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s codeDMVPNMethod of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub supportSSTPSSTP client instance supportZeroTierZeroTier VPN client supportWireGuardWireGuard VPN client and server supportTincTinc offers encryption, authentication and compression in it’s tunnels. Client and server support.BACNETSupported modesRouterSupported connection typesRS485, TCPConfiguration optionsSupport for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)OPC UASupported modesClient, ServerSupported connection typesTCPMODBUSSupported modesServer, ClientSupported connection typesRTU (RS232, RS485), TCPCustom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionalitySupported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCIIDATA TO SERVERProtocolHTTP(S), MQTT, Azure MQTT, KinesisData to serverExtract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server featureMQTT GatewayModbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT brokerDNP3Supported modesStation, OutstationSupported connection typesRS232, RS485, TCPDLMSDLMS SupportDLMS – standard protocol for utility meter data exchange. Support trough serial and TCPSupported modesClientSupported connection typesRS232, RS485, TCPAPITeltonika Networks Web API (beta) supportExpand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.comMonitoring & ManagementWEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet statusFOTAFirmware update from server, automatic notificationSSHSSH (v1, v2)SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GETCallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timerTR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystemMQTTMQTT Broker, MQTT publisherSNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protectionJSON-RPCManagement API over HTTP/HTTPSRMSTeltonika Remote Management System (RMS)IoT PlatformsThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network TypeCumulocity – Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actionsAzure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT HubsAWS IoT CoreUtility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionalitySystem CharacteristicsCPUMediatek, 580 MHz, MIPS 24KEcRAM128 MBFLASH storage16 MBFirmware / ConfigurationWEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backupFOTAUpdate FWRMSUpdate FW/configuration for multiple devices at onceKeep settingsUpdate FW without losing current configurationFactory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configurationFIRMWARE CUSTOMISATIONOperating systemRutOS (OpenWrt based Linux OS)Supported languagesBusybox shell, Lua, C, C Development toolsSDK package with build environment providedGPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needsPackage ManagerThe Package Manager is a service used to install additional software on the deviceLocation TrackingGNSSGPS, GLONASS, BeiDou, Galileo and QZSSCoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMSNMEANMEA 0183NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)Server softwareSupported server software TAVL, RMSGeofencingConfigurable multiple geofence zonesTracking sensitivity-157 dBmPosition Accuracy2.5m CEPSerialRS232Terminal block connector: TX, RX, RTS, CTSRS485Terminal block connector: D , D-, R , R- (2 or 4 wire interface)Serial functionsConsole, Serial over IP, Modem, MODBUS gateway, NTRIP ClientInput / OutputInput3x Configurable Digital Inputs, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high, 1x Analog input (0 – 30 V)Output3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O jugglerAllows to set certain I/O conditions to initiate eventPowerConnector2-pin in 16-pin industrial terminal blockInput voltage range9 – 30 VDC, reverse polarity protection, surge protection /-1 kV 50 µs maxPower consumptionIdle: < 1.5 W, Max: < 3.5 WPhysical InterfacesEthernet1 x RJ45 port, 10/100 MbpsI/O’s3 x Configurable digital I/O in 16-pin terminal blockStatus LEDs3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LEDSIM2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM trayPower1 x 16-pin terminal blockAntennas1 x SMA connector for LTE, 1 x SMA connector for GNSSRS2324-pin in 16-pin terminal block (TX, RX, RTS, CTS)RS4854-pin in 16-pin terminal block (D , D-, R , R-)ResetReboot/User default reset/Factory reset buttonPhysical SpecificationCasing materialAluminium housingDimensions (W x H x D)83 x 25 x 74.2 mmWeight165 gMounting optionsDIN rail, wall mount, flat surface (all require additional kit)Operating EnvironmentOperating temperature-40 °C to 75 °COperating humidity10% to 90% non-condensingIngress Protection RatingIP30Regulatory & Type ApprovalsRegulatoryCE, UKCA, EAC, RCM, FCC, IC, CB, WEEEEMC Emissions & ImmunityStandardsEN 55032:2015 A11:2020 A1:2020EN 55035:2017 A11:2020EN 61000-3-3:2013 A1:2019 A2:2021EN IEC 61000-3-2:2019 A1:2021EN 301 489-1 V2.2.3EN 301 489-19 V2.2.1EN 301 489-52 V1.2.1ESDEN 61000-4-2:2009Radiated ImmunityEN IEC 61000-4-3:2020EFTEN 61000-4-4:2012Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 A1:2017CSEN 61000-4-6:2014DIPEN 61000-4-11:2020RFStandardsEN 301 511 V12.5.1EN 301 908-1 V15.2.1EN 301 908-2 V13.1.1EN 301 908-13 V13.2.1EN 303 413 V1.2.1SafetyStandardsCE: EN IEC 62368-1:2020 A11:2020, EN IEC 62311:2020CB: IEC 62368-1:2018 SKU: TELTONIKA-TRB246-N Categories: IoT 4G Gateway, Teltonika, Teltonika IoT Gateways Tags: 4g gateway, 4G LTE Cat4 Gateway, Agriculture IoT Gateway, DIN Rail Mount Gateway, Dual SIM IoT Gateway, Energy Utilities Gateway, Ethernet IoT Gateway, Fixed IP IoT Gateway, Industrial Automation Gateway, Industrial IoT Gateway, iot gateway, M2M Gateway, Machine to Machine Communication Gateway, Private APN Gateway, Remote Monitoring Gateway, RS232, RS232 RS485 Gateway, rs485, Rugged Industrial Gateway, Secure IoT Connectivity, Smart City IoT Gateway, Teltonika Networks, Teltonika TRB246, TRB246, UK Industrial Gateway Brand: Teltonika
