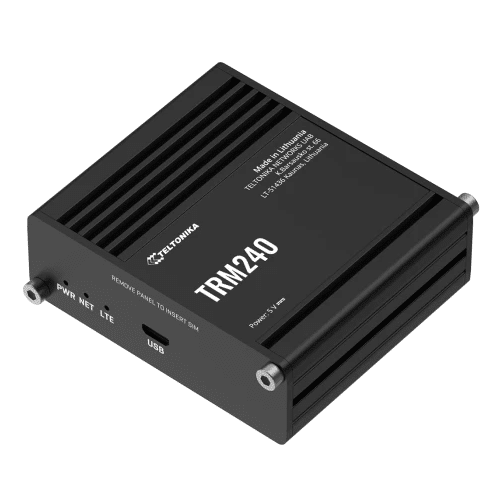

TRM240 is an industrial-grade USB LTE Cat 1 modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.CONNECTIVITY – 4G/LTE (Cat 1), 3G, 2GCOMPACT & DURABLE – Small size, easy installationUSB – Interface for internet accessEXTERNAL ANTENNA – For deployment flexibilitySpecificationMobileMobile module4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps3GPP ReleaseRelease 12PowerConnectormicroUSBInput voltage range5V – powered via microUSBPower consumption3.2 W MaxPhysical InterfacesStatus LEDs1 x Power LED, 1 x Network LED, 1 x Mobile LEDSIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 VPower1x microUSBAntennas1 x SMA for LTEPhysical SpecificationCasing materialAluminium housingDimensions (W x H x D)74.5 x 25 x 64.5 mmWeight131 gMounting optionsDIN rail, wall mount, flat surface (all require additional kit)Operating EnvironmentOperating temperature-40 °C to 75 °COperating humidity10% to 90% non-condensingIngress Protection RatingIP30TRM SOFTWAREManagement SoftwareWindows Connection Manager (NDIS driver)USB DriverWindows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.xRIL DriverAndroid 4.x/5.x/6.x/7.x/8.xNDIS DriverWindows 7/8/8.1/10Gobinet DriverLinux 2.6/3.x/4.1~4.14Linux Driver3.x (3.4 and later)/4.1~4.14Regulatory & Type ApprovalsRegulatoryCE, UKCA, EAC, UCRF, Kenya, ICASAEMC Emissions & ImmunityStandardsDraft EN 303 446-1 V1.1.0ESDEN 61000-4-2:2009Radiated ImmunityEN IEC 61000-4-3:2006 A1:2008 A2:2010RFStandardsEN 301 511 V12.5.1EN 301 908-1 V13.1.1EN 301 908-2 V13.1.1EN 301 908-13 V13.1.1SafetyStandardsCE: EN 62368-1:2014 A11:2017, EN 62311:2008 SKU: TELTONIKA-TRM240-N Categories: IoT 4G Gateway, Teltonika, Teltonika IoT Gateways Tags: CAT1 LTE modem, Teltonika TRM240, TRM240
