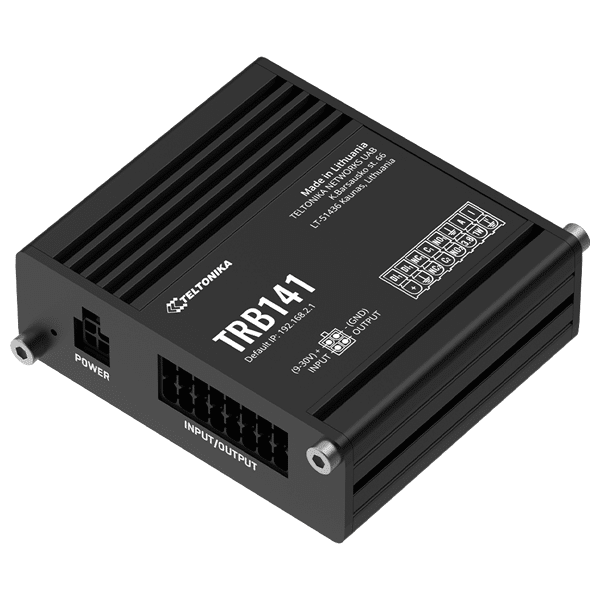

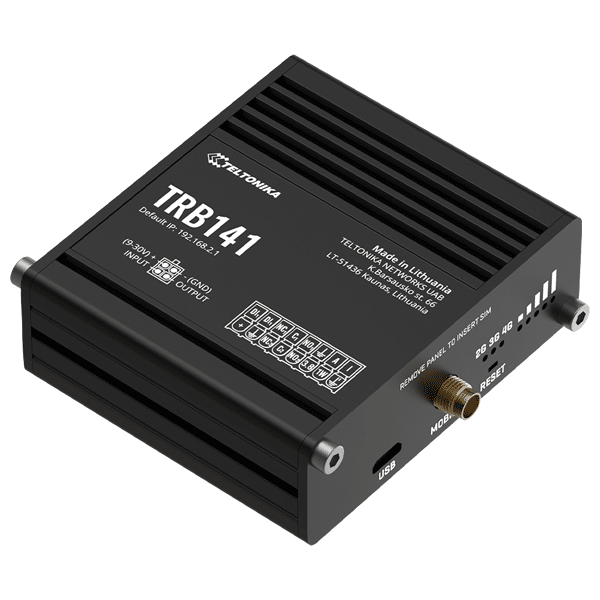

Teltonika TRB141 Rugged GPIO LTE 4G Gateway (CAT 1 LTE)

The TRB141 industrial LTE Cat 1 gateway is equipped with a micro USB and various Input/Output options, including Digital, Relay, Analog, and Isolated.Paired with secure and functional RutOS, plenty of processing power, and Teltonika Networks Remote Management System (RMS), this device offers unprecedented application flexibility to manage and control equipment remotely over LTE Cat 1.It has a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support. Perfect for application scenarios, where devices must be remotelymanaged using Inputs/Outputs.MOBILEMobile module4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbpsStatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCIDSMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white listMultiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthroughRouter assigns its mobile WAN IP address to another device on LANNETWORKRoutingStatic routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTTVoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rulesDHCPStatic and dynamic IP allocation, DHCP Relay, RelaydQoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNSSupported >25 service providers, others can be configured manuallyNetwork backupMobile, VRRP, Wired options, each of which can be used as an automatic FailoverSSHFSPossibility to mount remote file system via SSH protocolSECURITYAuthenticationPre-shared key, digital certificates, X.509 certificatesFirewallPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-TAttack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)VLANPort and tag based VLAN separationMobile quota controlCustom data limits for SIM cardWEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites onlyAccess controlFlexible access control of TCP, UDP, ICMP packets, MAC address filterVPNOpenVPNMultiple clients and a server can run simultaneously, 12 encryption methodsOpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBCIPsecIKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)GREGRE tunnelPPTP, L2TPClient/Server instances can run simultaneously, L2TPv3 supportStunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s codeDMVPNMethod of building scalable IPsec VPNsSSTPSSTP client instance supportZeroTierZeroTier VPN client supportWireGuardWireGuard VPN client and server supportMODBUS TCP SLAVEID rangeRespond to one ID in range [1;255] or anyAllow Remote AccessAllow access through WANCustom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionalityMODBUS TCP MASTERSupported functions01, 02, 03, 04, 05, 06, 15, 16Supported data formats8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)MODBUS DATA TO SERVERProtocolHTTP(S), MQTT, Azure MQTTMQTT GATEWAYMQTT GatewayAllows sending commands and receiving data from MODBUS Master through MQTT brokerDNP3Supported modesTCP Master, DNP3 OutstationMONITORING & MANAGEMENTWEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel logFOTAFirmware update from server, automatic notificationSSHSSH (v1, v2)SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GETCallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timerTR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystemMQTTMQTT Broker, MQTT publisherSNMPSNMP (v1, v2, v3), SNMP TrapJSON-RPCManagement API over HTTP/HTTPSMODBUSMODBUS TCP status/controlRMSTeltonika Remote Management System (RMS)IOT PLATFORMSCloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, AvailabilityThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network TypeCumulocityAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal StrengthAzure IoT HubCan send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection typeSYSTEM CHARACTERISTICSCPUARM Cortex-A7 1.2 GHzRAM128 MB, DDR2FLASH storage512 MB, SPI FlashFIRMWARE / CONFIGURATIONWEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup, restore pointFOTAUpdate FWRMSUpdate FW/configuration for multiple devices at onceKeep settingsUpdate FW without losing current configurationFIRMWARE CUSTOMIZATIONOperating systemRutOS (OpenWrt based Linux OS)Supported languagesBusybox shell, Lua, C, C Development toolsSDK package with build environment providedINPUT / OUTPUTInput2 x Digital inputs (configurable passive or active), 1 x Isolated input, 1 x Analog input ( with 4-20 mA capability). 1 x Configurable Inputs. Digital input 0 – 5 V detected as logic low, 8 – 30 V detected as logic high.Output2 x Relay outputs (latching and non latching). 1 x Configurable Output, Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O jugglerAllows to set certain I/O conditions to initiate eventPOWERConnector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPower consumption< 5 WPHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)I/O’s3 x Digital Inputs, 1 x Analog input, 2 x Relays on 16 pin connector, 2 x I/O pins on 4 pin power connectorStatus LEDs3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LEDSIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 VPower1 x 4-pin power connector1-Wire1 x 1-Wire interface on 16 pin connectorAntennas1 x SMA for LTEUSB1 x Virtual network interface via micro USBResetReboot/User default reset/Factory reset buttonPHYSICAL SPECIFICATIONCasing materialAluminum housingDimensions (W x H x D)74.5 x 25 x 64.4 mmWeight136 gMounting optionsBottom and sideways DIN rail, Flat surfaceOPERATING ENVIRONMENTOperating temperature-40 °C to 75 °COperating humidity10% to 90% non-condensingIngress Protection RatingIP30REGULATORY & TYPE APPROVALSRegulatoryCE/RED, EAC, RoHS, WEEEEMI IMMUNITYStandardsDraft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0ESDEN 61000-4-2:2009RSEN 61000-4-3:2006 A1:2008 A2:2010EFTEN 61000-4-4:2012Surge protectionEN 61000-4-5:2014CSEN 61000-4-6:2014DIPEN 61000-4-11:2004RFStandardsEN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2SAFETYStandardsIEC 62368-1:2014(Second Edition), EN 62368-1:2014 A11:2017EN 50385:2017EN 62232:2017 SKU: TELTONIKA-TRB141-N Categories: IoT Gateways, Teltonika IoT Gateways Tags: 4g gateway, cat 1, cat 1 gateway, cat1, lte gateway, Teltonika TRB141, TRB141 Brand: Teltonika
